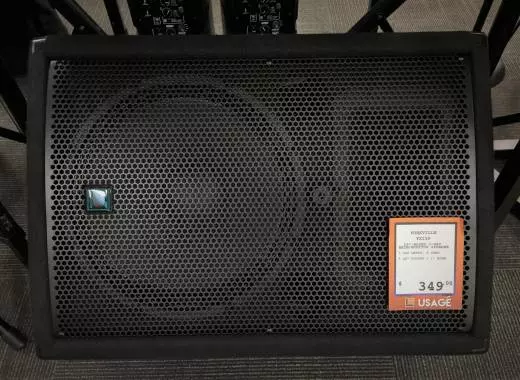

Yorkville Sound - YX15P
Description
**En excellente condition**
Specifications:
* Integrated 200 Watt Amplifier
* Bi-Amplified Power Module
* 15-inch Woofer
* 1-inch Compression Driver (1.4-inch Voicecoil)
* Designed for Front-of-House or Monitor applications
* 90 x 40 Horn with with Peak Limiter Protection
* Built-in Mixer with Two Band EQ and LF Roll-Off Mode Switch
* Paralleled XLR and 1/4-inch Inputs
* Integrated All Metal Speaker Standmount Adaptor
* Solid 5/8-inch (15mm) Plywood Construction
Specifications:
* System Type - 2-Way
* Active or Passive - Active
* Total Applied Power(Watts) - 200
* Max SPL (dB) - 122
* Frequency Response (Hz +/- 3db) - 60-20k
* Crossover Frequency (Hz) - 1800
* HF Driver - 1.4 inch Aluminum (1 inch Throat)
* HF Horn - Injection Molded ABS
* HF Dispersion (H x V) - 90 x 40
* HF Protection - Peak Limiter
* LF Driver(s) - 15 inch Ceramic
* HF Power Amplifier (Watts) - 20
* HF Amplifier Type - Class A/B
* LF Power Amplifier (Watts) - 180
* LF Amplifier Type - Two-Tier Class H
* Power Consumption (typ/max) - 120/310 VA
* Inputs - 1/4" Line-Level + XLR Mic/Line Combi
* Input Sensitivity (Vrms Sine) - +4dBv/1.23V
* Output - XLRM Line-Level Mix Out
* Controls - Mic Gain, Line/Level, B/M/T EQ
* Limiter- Yes
* LED Indicators - Power/Activity/Limit
* Corners- Metal
* Feet - Plastic Glides
* Bar Handles - 2
* Stand Adapter - 1 3/8"/3.5cm dia.
* Enclosure Material - 15mm (5/8-inch) Plywood
* Covering / Finish - Black
* Grill - Custom-Perforated Metal
* Dimensions (DWH+back,inches) - 15.5 x 19.25 x 27.5 x 7.5
* Dimensions (DWH+back, cm) - 39.4 x 48.9 x 69.9 x 19
* Weight (lbs/kg)- 51/23.1
