Sorry, this item is not available for purchase

Gear Hunter

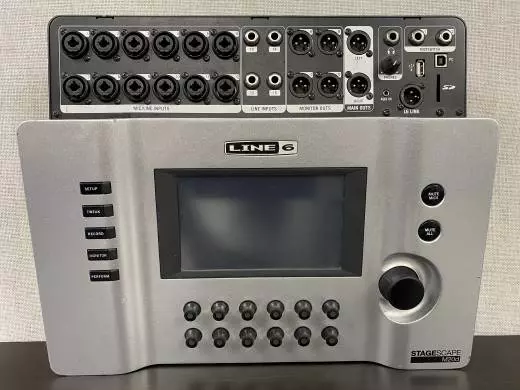

Line 6 - L6M20D

SKU: 372238 Model: L6M20D Serial: d201m6234000727
Quantity Available: 1 Condition: Used


Description

Easy Multitrack Recording!
The StageScape M20d introduces a new future for live sound. It automatically senses when you plug in a microphone, an instrument, or a speaker, and sets up the channel accordingly. A big, colorful touchscreen gives you interactive control over every part of your show, while intuitive interaction with EQs, effects, feedback suppression, and more makes mixing a breeze even for novices! You can even run a soundcheck while the band isn't playing as well as mix remotely via iPad! Then easily record your show in high-quality multitrack audio with or without a computer! With Line 6's StageScape M20d, the future is here!

The StageScape M20d's touchscreen display gives you instant access to an array of mixing functions that are usually spread all over a typical mixing board. Need to get a great vocal sound fast? Plug in your vocal mic and select a vocal effects preset; the StageScape M20d will configure a custom chain of processors specifically for vocals, ready to tweak to perfection. Setting up a stage mix is easy too just plug in all your sound sources and speakers, and the StageScape M20d will automatically recognize what's plugged into it. Routing signals, adding effects, and even setting up monitor mixes is as effortless as playing connect the dots. To speed things up even more, you can select one of the professionally crafted DSP presets for your channel and save and recall a huge number of your own presets!

Processing
The DSP built into the StageScape M20d replaces multiple racks of gear that you normally need to get the best live sound. You get multiband feedback suppression on every mic input for squeal-free performance, even with the most difficult stage setups. And in addition to a host of EQ, dynamics, and effects processors available for every channel, there are four stereo master effects available for adding a final polish to the entire mix. With 100 pro-quality audio processors and 32-bit floating-point processing, the StageScape gives you pristine audio and at high-resolution throughout. Pro-sounding live mixes are within your reach even if you've never used a mixing board before!

Inputs & Outputs
Plug in all of your sound sources, and the StageScape M20d automatically recognizes which are microphones and which are instruments and optimizes your channel strip and effects settings for them! Using visual cues to route signals and set up monitor mixes, you can manage your audio routing easily via the touchscreen interface. And via Smart Speaker mode, your main PA speakers and subwoofers are automatically self-configured, panned, adjusted, and optimized!

Soundcheck
Thanks to the StageScape M20d's Quick Capture soundcheck features, you can record up to 20 seconds of audio to the internal memory from any of the inputs. The recording plays in a loop, so you can optimize each sound while the band continues setting up. Plus you can set up and adjust the StageScape M20d from anywhere in the room with your iPad! Make mix adjustments from different parts of the room and even tweak monitor mixes right from the stage!

Record Your Show
In addition to using the 20 seconds of Quick Capture recording, you can also record your entire show in high-resolution 24-bit WAV files to an SD card or a USB drive, or directly to your Mac or PC! The WAV files are recorded pre-effects, so the raw tracks can be processed and mixed later in your favorite DAW software, such as Avid Pro Tools or PreSonus Studio One.

A New Paradigm of Mixing Live Sound
The Line 6 StageScape M20d digital mixing system gives you a powerful and intuitive new way to mix and record your live shows. StageScape M20d was built from the ground up to take the guesswork out of live mixing, letting you focus on the performance and not on your gear. Imagine plugging in all of your sound sources, while the StageScape M20d automatically recognizes which are microphones and which are instruments and optimizes your channel strip and effects settings for them. Then picture managing your signals from an intuitive touchscreen interface, using visual cues to route signals and set up monitor mixes. The StageScape M20d puts world-class live sound within your reach, and even makes recording your performance easier than ever. And with a total of 20 inputs (16 auto-sensing) and six auto-sensing outputs, built-in multiband feedback suppression, remote mixing via iPad, and sound check capability, you'll be able to set up faster - and sound better - than ever before.

Specification Detail
Type - Digital
Channels - 16
Inputs - Mic Preamps 12 x XLR
Inputs - Line 4
Inputs - Other 2 x digital USB, 1 x 1/8" Aux
Outputs - Main 2 x XLR
Outputs - Other 4 x XLR Monitor
Headphone Jack - 1 x 1/4"
Send/Return I/O - None
EQ Bands - Fully Parametric
Aux Sends - None
Busses/Groups - 2
Faders - Not Applicable
Channel Inserts - No
Effects - Yes (100 processors)
Talkback - No
Computer Connectivity - 2 x USB
Rackmountable - No
Height - 4.7"
Depth - 13.3"
Width - 16"
Weight - 12.3 lbs.
Notes - Feedback Suppresion built in
