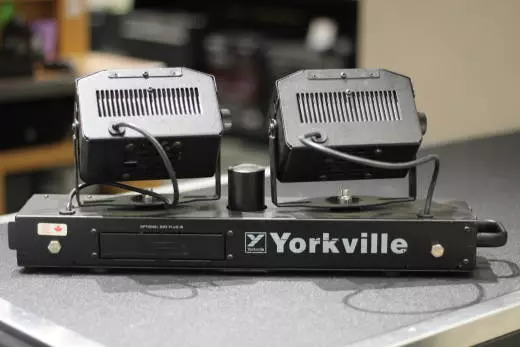

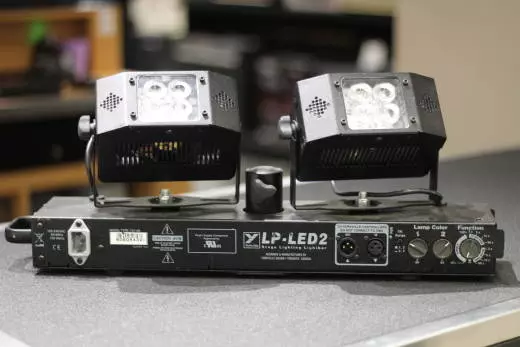

Yorkville Sound - LP-LED2
Model: LP-LED2
SKU: 379813
Serial: 6080843V3
Quantity Available: 1
Condition: Used

Phone: (519) 252-3442




The Yorkville LP-LED2 is an ultra compact mobile lighting solution that delivers enough lighting coverage to compete with the popular Yorkville LP302 conventional quartz bulb system. The Yorkville LP-LED2 uses two compact light pods, each containing four 16 watt high- intensity RGBW (Red, Green, Blue, White) LEDS. This innovative design delivers excellent colour uniformity across the spread pattern and enough light intensity to make an LED system practical for virtually any application.

Unlike most LED light cans currently on the market, each pod on the LP-LED2 emit a mixed colour, not an array of individual coloured LEDs that can be distracting to the audience. This also means the artist setting up their scene or the light designer building a set can see the colour being displayed in the pod. This also ensures the only light visible to the audience is the light chosen for the scene and not the LED elements.

Each pod on the LP-LED2 displays a beam angle of +/- 13 degrees which projects approximately a four and a half foot diameter circle on a stage at 10 feet from the source. The multipurpose LP-LED2 works for floor for foot-lighting, for colour washing on a wall or scrim, or mounted on a standard tripod speaker stand for use in a typical stage lighting applications. Four threaded mounting points are included on each bar for easy permanent installation. The LP-LED2 can be controlled via the LP-608 with a Link Audio AA57 adapter" right at the end as well.

Each pod on the LP-LED2 and LP-LED4 emit a complete mixed colour, not an array of individual coloured LEDs that can be distracting to the audience or diminish a finished professional stage view. This also ensures the only light visible to the audience is the light chosen for the scene and not the LED elements.

The artist setting up scenes or the light designer building a set can see the colour being displayed in the pod, making lighting design as simple and straightforward as possible.

Light pods on LP-LED systems display a beam angle of +/- 13 degrees which projects approximately a four and a half foot diameter circle on a stage at 10 feet from the source.

LP-LED2 and LP-LED4 can be controlled by proprietary desktop (LP-C12) or floor (LP-C4) controllers direct connected to the light bars using standard XLR microphone cables. In simple effect and ambient lighting applications, LP-LED light bars can operate as standalone units with, colour chase and fades set directly on the bars themselves. For more complex applications, LP-LED lights can be incorporated into larger systems with optional user installed DMX3 and DMX5 cards.

Features:
* Two pods with four RGBW (Red Green Blue White) 16 watt LEDS
* 32 colors available from each pod with when used with Yorkville LP-C12 controller
* Connects to Yorkville LP-C4 or LP-C12 controllers using standard XLR mic cables
* Can operate as a standalone unit
* Yorkville proprietary Communication Protocol (DMX optional with add in module)
* Universal power supply (90 to 250 VAC)
* Low power consumption
* Integrated Color control for each pod (15 colors available)
* Master light intensity level control
* 4-speed color fade
* Made in Canada

Specifications:
* Max AC Input Voltage: 100-240VAC 50/60 Hz
* Power Consumption LEDs: 16 Watts per LED, 4 LEDs per head, 64 Watts total
* Power Consumption: 132 Watts / 1.1A (@120VAC)
* Stand Mount Size: 1 3/8 inch Round
* Controller Cable: Standard Shielded 3-pin XLR Cable
* Other: Optional DMX Module
* Dimensions (LWH inches): 21 x 4 x 8
* Dimenstions (LWH cm): 53.4 x 10.2 x 20.3
