Gear Hunter / Yorkville LP-LED4 Light Bar

Customer responsible for any shipping charges.
This product may not come in original packaging.
You are looking at serial 2121988V2
We have 2 of these online.

Compare all 2

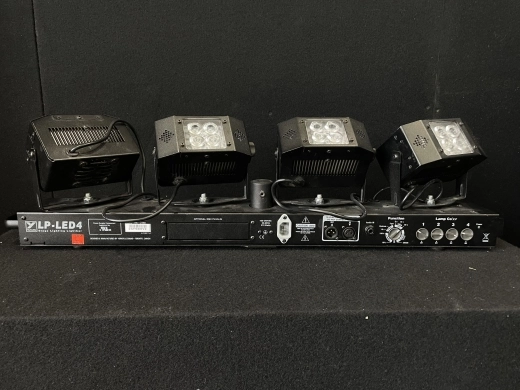

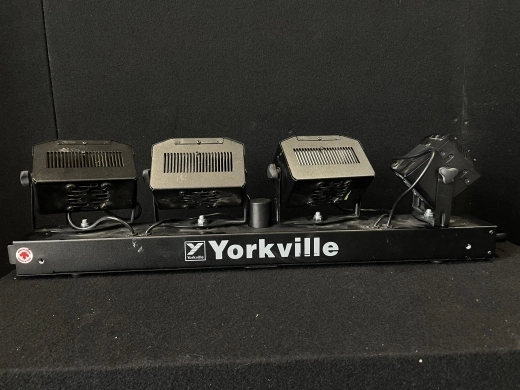

Yorkville LP-LED4 Light Bar
Model: LP-LED4
SKU: 333938
Serial: 2121988V2
Quantity Available: 1
Condition: Used

Phone: (403) 346-4000

Sale Price: $699
Original Price: $1625


 Ship from Store     Pick Up in Store

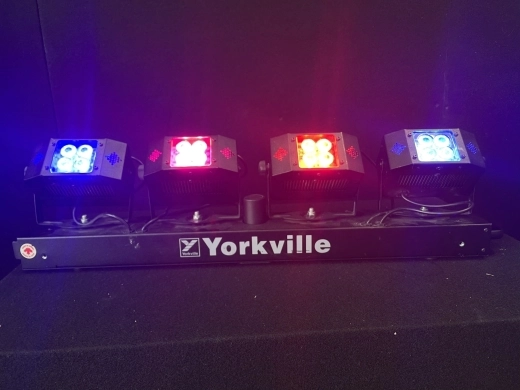

The Yorkville LP-LED4 has been designed from the ground up to be the ideal ultra compact mobile lighting system for duos, bands or DJ's. Needing an LED system that is fully functional and delivers enough lighting coverage to compete with the popular conventional Yorkville LP304 and LP302 systems, the Yorkville LP-LED4 consists of four compact light pods, each containing four 16 watt high- intensity RGBW (Red, Green, Blue, White) LEDS. This innovative design delivers excellent colour uniformity across the spread pattern and enough light intensity to make an LED system practical for virtually any application.

Unlike most LED light cans currently on the market, each pod on the LP-LED4 emit a mixed colour, not an array of individual coloured LEDs that can be distracting to the audience. This also means the artist setting up their scene or the light designer building a set can see the colour being displayed in the pod. This also ensures the only light visible to the audience is the light chosen for the scene and not the LED elements.

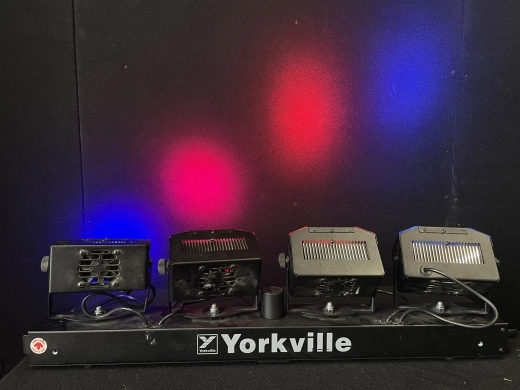

Each pod on the LP-LED4 displays a beam angle of +/- 13 degrees which projects approximately a four and a half foot diameter circle on a stage at 10 feet from the source. The LP-LED4 can be used on the floor for foot-lighting or colour washing a wall, or mounted on a standard tripod speaker stand for use in a typical stage application. There are also four threaded mounting points on each bar for easy installation. The LP-LED4 can be controlled via the LP-608 with a Link Audio AA57 adapter

Technology:
Each pod on the LP-LED2 and LP-LED4 emit a complete mixed colour, not an array of individual coloured LEDs that can be distracting to the audience or diminish a finished professional stage view. This also ensures the only light visible to the audience is the light chosen for the scene and not the LED elements.

The artist setting up scenes or the light designer building a set can see the colour being displayed in the pod, making lighting design as simple and straightforward as possible.

Light pods on LP-LED systems display a beam angle of +/- 13 degrees which projects approximately a four and a half foot diameter circle on a stage at 10 feet from the source.

LP-LED2 and LP-LED4 can be controlled by proprietary desktop (LP-C12) or floor (LP-C4) controllers direct connected to the light bars using standard XLR microphone cables. In simple effect and ambient lighting applications, LP-LED light bars can operate as standalone units with, colour chase and fades set directly on the bars themselves. For more complex applications, LP-LED lights can be incorporated into larger systems with optional user installed DMX3 and DMX5 cards.

Features:
* Four pods each with four RGBW (Red Green Blue White) 16 watt LEDS
* 32 colors available from each pod with when used with Yorkville LP-C12 controller
* Connects to controller using standard XLR mic cables
* Universal Power supply (90 to 250 VAC )
* Power Consumption 270 watts maximum
* Yorkville proprietary Communication Protocol (DMX optional with add in module)
* Audio chase input accepts line level or speaker level input (20mV to 100v)
* Standalone Operation
* Color control for each pod (15 colors available)
* Master intensity level
* 3-speed chase
* 3-speed color fade
* Audio chase
* Made in Canada

Specifications:
* Max AC Input Voltage: 100-240VAC 50/60 Hz
* Power Consumption LEDs: 16 Watts per LED, 4 LEDs per head, 64 Watts total
* Power Consumption: 270 Watts
* Stand Mount Size: 1 3/8 inch Round
* Controller Cable: Standard Shielded 3-pin XLR Cable
* Other: Optional DMX Module
* Dimensions (LWH inches): 32.5 x 4 x 8
* Dimenstions (LWH cm): 82.6 x 10.2 x 20.3
* Weight: 20.3lbs / 9.2kgs
