Sorry, this item is not available for purchase

Gear Hunter

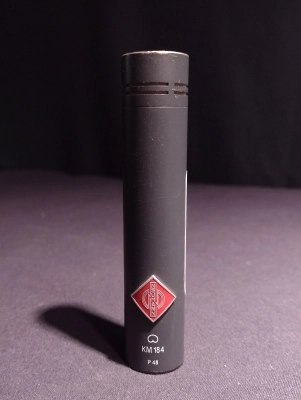

SMALL DIAPHRAGM CONDENSER MIC

SKU: 210762 Model: KM 184 MT Serial: 56577
Quantity Available: 1 Condition: Used


Description

KM 184 MT
Authentic, vibrant, transparent: The perfect high-resolution instrument microphone

High-precision tool for instruments and voice
Reference class small diaphragm microphone
Also available in stereo sets
VARIANTS
neumann KM 184 MTKM 184 MT
ZERO TOLERANCE: THE MASTER CLASS FOR INSTRUMENTAL RECORDINGS
Without any doubt, you must have heard the KM 184 in various recordings, as it is the go-to instrument microphone in countless studios around the globe. Its strengths: A natural sound reproduction (also of voices), an entirely uncolored and authentic sound character and the ability to handle high sound levels. More...

MORE ABOUT THE KM 184
Experienced users often describe the sound of our small diaphragm microphone as „fresh“ and „vivid”. This is – among other factors – due to a slight treble lift around 9 kilohertz. The KM 184 is an experienced all-rounder, a mic for all seasons. It captures virtually any instrument with amazing complexity and depth of sound.



Another advantage: thanks to the extremely tight production tolerances, all KM 184 microphones produce a very consistent sound. Therefore, they can easily be used as a stereo pair with exact spatial imaging for all stereo recording methods.


FEATURES
Versatile small membrane microphone primarily for instrumental recordings
Slight treble lift for fresh and vivid sound
Precise cardioid directionality with excellent rejection of rearward sound
Uncolored reproduction of neighboring sound sources
Tight production tolerances – perfect for stereo recordings
APPLICATIONS
TECHNICAL DATA
Acoustical operating principle: Pressure gradient transducer
Directional pattern: cardioid
Frequency range: 20 Hz ... 20 kHz
Sensitivity at 1 kHz into 1 kohm: 15 mV/Pa
Rated impedance: 50 ohms
Rated load impedance: 1 kohms
Equivalent noise level, CCIR1): 22 dB
Equivalent noise level, A-weighted1): 13 dB-A
Signal-to-noise ratio, CCIR1) (rel. 94 dB SPL): 72 dB
Signal-to-noise ratio, A-weighted1) (rel. 94 dB SPL): 81 dB
Maximum SPL for THD 0.5%2): 138 dB
Maximum output voltage: 10 dBu
Supply voltage (P48, IEC 61938): 48 V ± 4 V
Current consumption (P48, IEC 61938): 3.2 mA
Matching connectors: XLR 3F
Weight approx.: 80 g
Diameter: 22 mm
Length: 107 mm
