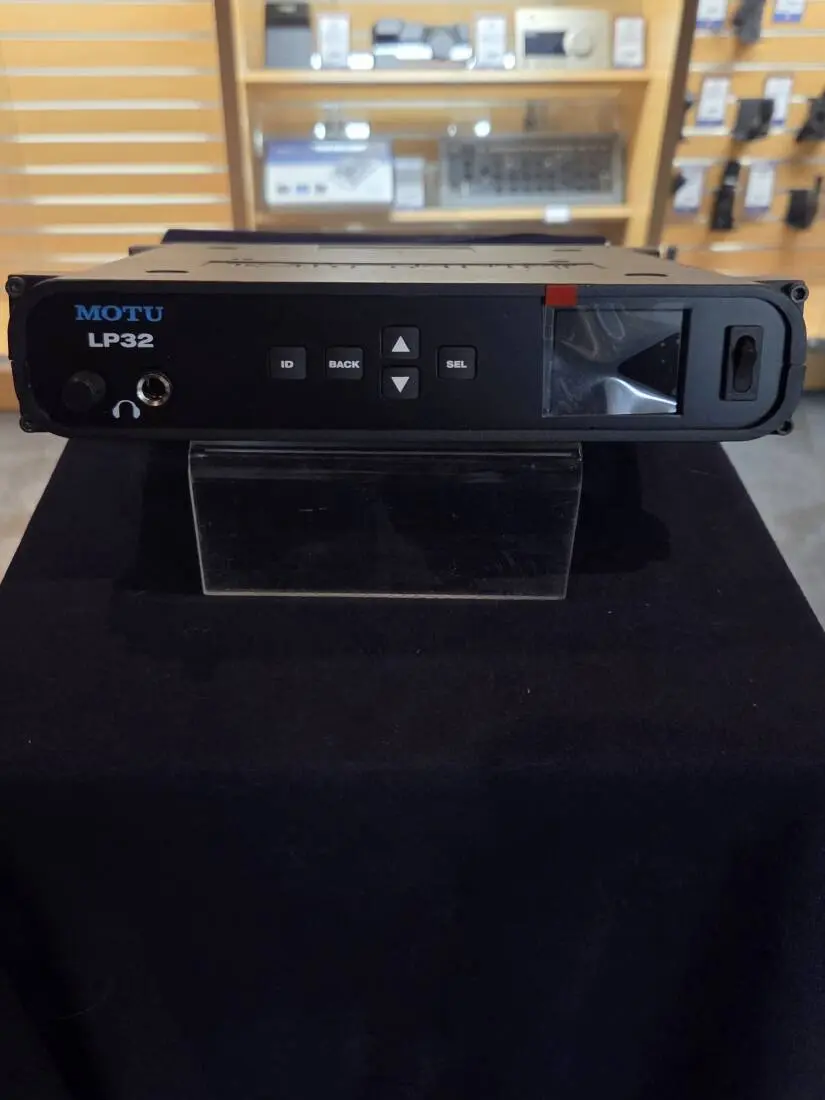

The LP32 is a flexible ADAT optical "lightpipe" audio interface, router, splitter, converter and mixer with AVB/TSN networking. It is ideal for routing optical digital audio in live performance systems, network installations or recording studios of any size. The LP32 provides four independent banks of 8-channel ADAT optical I/O, 64 channels of USB I/O, 32 channels of AVB-TSN network I/O and a headphone output, for a total of 258 simultaneous I/O channels.

Features:
* High-performance computer connectivity: New, optimized drivers for both Mac and PC deliver ultra-low latency performance
* A flexible digital converter, router, splitter and repeater: Send any input to any output, or split to multiple output channels
* DSP mixing and effects processing
* Stand-alone operation with wireless control
* Web app control
* Comprehensive Metering
* Standard word clock input and output allows you to resolve the LP32 to other digital audio gear or house sync
* Convenient headphone monitoring

Specifications:
* Sample rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz
* Digital I/O: 4 banks of 8-ch ADAT optical at 1x sample rates
4 banks of 4-ch SMUX optical at 2x sample rates
Individually switchable to stereo TOSLink (optical S/PDIF)
* Total I/O: 32 in / 32 out (64 total) at 1x sample rates
16 in / 16 out (32 total) at 2x sample rates
* Computer I/O: 1 x USB 2.0 audio class compliant, USB 3.0 and iOS compatible
* Computer I/O channels: 64 in/out at 1x (44.1 to 48 kHz)
32 in/out at 2x (88.2 to 96 kHz)
24 in/out at 4x (176.4 to 192 kHz)
* Headphone: 1 x 1/4" TRS stereo phone (assignable)
* Front panel:1 x 1/4" TRS headphone output
4x switches for menu navigation
160 x 128 RGB LCD for level meters / menu
* PowerExternal 12-18V DC power supply 1.0A max, tip pos or neg
* Dimensions: 8.6 x 7 x 1.75 inches / 22 x 17.75 x 4.5 cm
* Weight: 2.0 lbs / 0.9 kg
* System Requirements, Mac: 1 GHz Intel-based Mac or faster
2 GB RAM; 4 GB or more recommended
Mac OS X version 10.8 or later
Available USB 2.0 or 3.0 port
A large hard drive (at least 500 GB for recording)
* System Requirements, PC: 1 GHz Pentium-based PC compatible or faster
2 GB RAM; 4 GB or more recommended
Windows 7, 8 or 10
Available USB 2.0 or 3.0 port
A large hard drive (at least 500 GB for recording)
