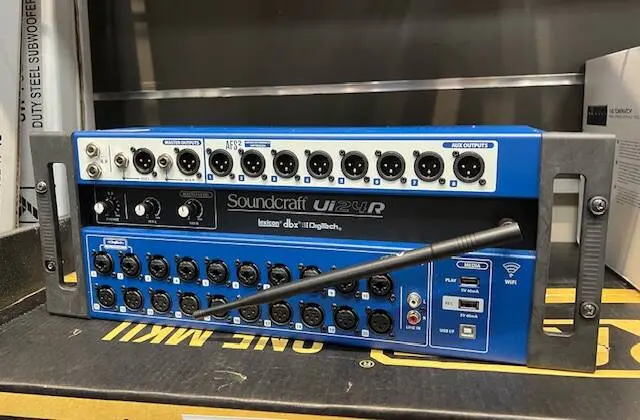

Soundcraft Ui24R 24-Channel Digital Mixer / Multitrack USB Recorder with Wireless Control

The Soundcraft Ui24R is a complete, rack-mountable digital mixing console and multitrack recording system offering extensive connectivity, pristine sound quality, intuitive wireless control, and rock-solid reliability, all in a compact form factor. Up to 10 devices can be controlled via Ethernet or built-in dual-band Wi-Fi, enabling wireless control of mixing and multitrack recording.

The Ui24R interface offers 24 input channels, including 10 combo/XLR, 10 XLR, two line inputs, and two digital mix inputs, for a total of 24 simultaneous inputs. The renowned Studer preamps deliver a rich sound, ideal for live performance and multitrack recording. Lexicon's signature dbx reverbs, chorus, delays, and compression ensure pristine results for vocals, acoustic guitar, and much more. dbx AFS2 automatic feedback suppression is available on all monitor outputs for an optimal live experience. Additionally, two DigiTech amp and guitar modeling channels add a wealth of effects to your performances and recordings, especially useful when the stage volume is low.

Ui24R revolutionizes live mixing by giving sound engineers the freedom to control their mixes from anywhere in the venue. Up to 10 devices can be connected simultaneously via reliable dual-band Wi-Fi, allowing musicians to fine-tune their individual mixes on stage while the front-of-house engineer optimizes the audience experience. Thanks to its HTML5 compatibility, the system can be controlled from any modern browser (iOS, Android, Windows, macOS, and Linux) without the need for app installation.

The Ui24R allows sound engineers and musicians to redundantly record their stereo mix, as well as all 22 inputs, directly to a USB storage device and a connected computer. The Ui24R also finds its place at the heart of a multitrack recording studio, thanks to its easy integration between its USB audio interface and the user's DAW (Digital Audio Workstation) software.

The Soundcraft Ui24R loudspeaker is part of the HARMAN Connected PA product line and is fully compatible with the new HARMAN Connected PA app for simplified control, quick setup, and optimal sound quality. Connected PA eliminates the need for multiple apps or graphical interfaces and offers seamless plug-and-play operation with various HARMAN equipment. This allows users to control their entire live sound system with a single app. Connected PA system products are automatically recognized by the app for simplified setup, and setup wizards help quickly optimize volume, configuration settings, and sound quality.

From stage to studio, the Soundcraft Ui24R is the ideal system for artists, performance venues and sound engineers who need to save space while delivering superior sound quality.

Features

* Renowned Soundcraft quality and performance
The built-in dual-band Wi-Fi eliminates the need for a router and ensures a reliable connection for up to 10 mobile devices in critical situations.
Control Ui24R from iOS, Android, Windows, Mac OS and Linux browsers without installing additional applications.
* Record and mix with the warmth of 20 professional preamps designed by Studer.
* dbx compression and Lexicon reverb and delay processing
* 2 DigiTech guitar amp modeling channels
Redundant dual-channel multitrack recording of all 24 inputs to a USB flash drive and connected Mac/Windows computers.
* 24 simultaneous inputs: 10 TRS/XLR combo inputs (including 2 high-impedance instrument inputs), 10 XLR inputs, 1 stereo RCA line input, 2 digital inputs
4-band parametric equalizer, high-pass filter, compressor, de-esser and noise gate on the input channels
31-band graphic equalizer, noise gate, compressor and automatic feedback suppression dbx AFS2 on all outputs
* Real-time frequency analyzer (RTA) on inputs and outputs
* Compatible with Mac/Windows digital audio workstations (DAWs) and other music software
* Compatible with the Harman Connected PA app and system for simplified setup and control
* 4U rack format
