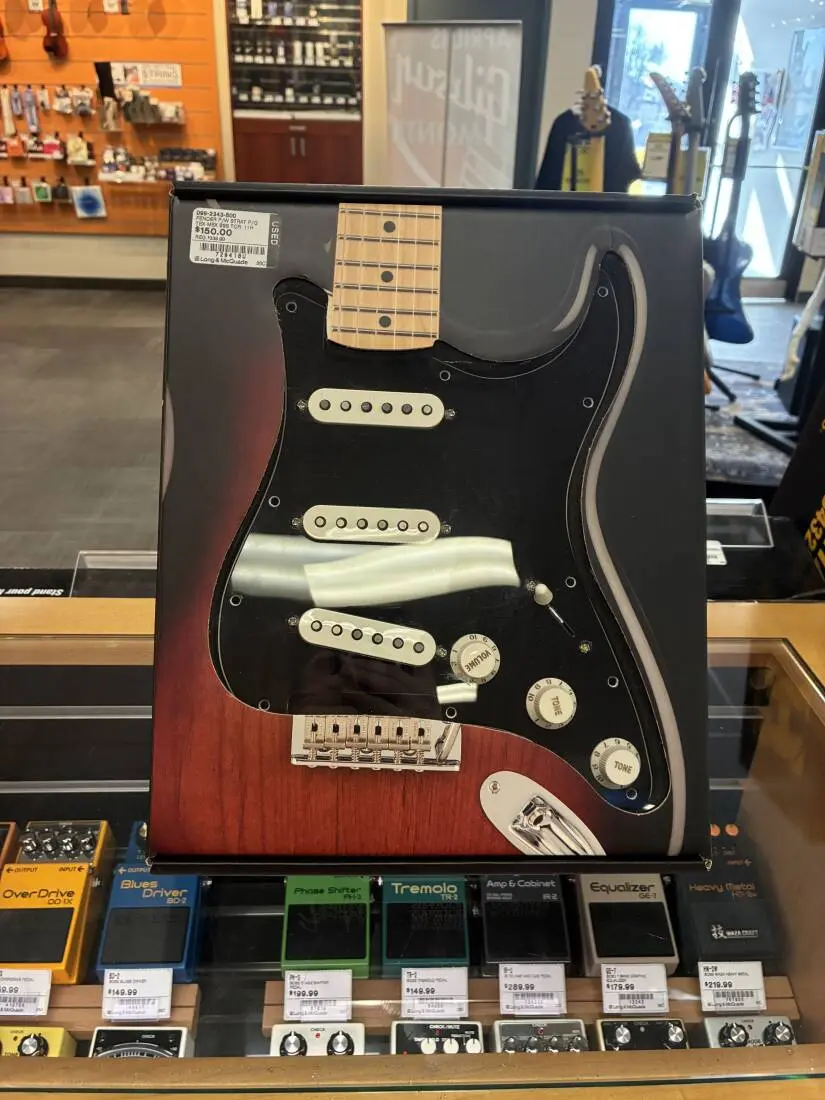

Customize your tone with the Pre-Wired Stratocaster pickguards. Made with premium components in the same factory as Fender's iconic guitars, this drop-in pickguard is easy to install. Simply remove your old guard, solder the output jack and ground wires, screw in the new guard and you're ready to rock with pure Fender sound.

Features

* Tex-Mex Pickups
* Polysol-coated magnet wire
* Staggered pole pieces for balanced output
* Alnico 5 magnets for focus and enhanced dynamics
* Reverse-wound middle pickup to eliminate hum
* Overwound bridge pickup for maximum output
* Vinyl-coated output wire and plastic bobbin

Specifications

Hardware
PICKGUARD: 3-Ply, available in Black, Parchment and Tortoise Shell
PICKUP COVERS: Aged White
HARDWARE FINISH: Chrome
MOUNTING TYPE: 11-Hole Modern

*Note: does not include output jack or pickguard mounting screws

Electronics
BRIDGE PICKUP: Tex-Mex™ Single-Coil Strat®
MIDDLE PICKUP: Tex-Mex™ Single-Coil Strat®
NECK PICKUP: Tex-Mex™ Single-Coil Strat®
PICKUP CONFIGURATION: SSS
LEAD WIRE: Vinyl-covered
MAGNET TYPE: Alnico 5
MAGNET WIRE: Polysol-coated
SHIELDED: Yes
POLE PIECES: Staggered
BOBBIN MATERIAL: Nylon
CONTROLS: Master Volume, Tone 1. (Neck Pickup), Tone 2. (Bridge/Middle Pickup)
DC RESISTANCE: Neck: 6.5K, Middle: 6.4K, Bridge: 7.4K
INDUCTANCE: Neck/Middle: 2.75 Henries, Bridge: 3.7 Henries
POTENTIOMETERS: CTS 250K
