Accessories Included: SOLD AS IS WITH POWER SUPPLY

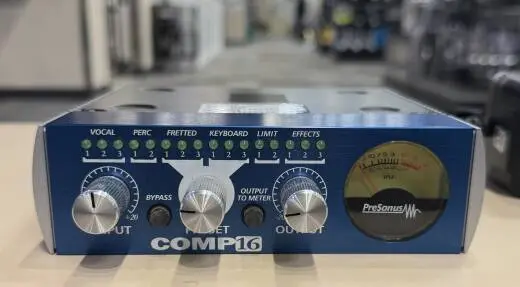

COMP16: compression made easy
Dynamics processing is by far the most commonly misunderstood type of signal processing. It’s just not as intuitive as, say, EQ and delay. Many musicians struggle to find the right compressor settings. The COMP16 makes compression more accessible by providing 16 presets that have been carefully tailored for a wide range of applications, including vocals, percussion, fretted instruments, keyboards, stereo program material, and effects. All you have to do is choose a preset, tweak the input gain and makeup gain to taste, and you’re done. The backlit VU meter displays either gain reduction or output gain, and a bypass switch lets you check the processed signal against the original. Like other processors in our Max Rack series, the COMP16 has separate balanced ¼” line and XLR mic inputs and outputs, and it can sit on a tabletop or can be mounted in 1/3 rackspace, using the optional 3UMR rack adapter. And that’s all you need to know—except that the price is as small as the box. COMP16: compression made easy.

Overview
Features
Analog compressor/limiter with:
Preset Select (16 presets)
Input gain control with -20 to +20 dB gain range
Output (makeup) gain control with -20 to +20 dB gain range
Backlit VU meter
Output to Meter switch (meter displays gain reduction or output gain)
Bypass
Input/Output
1 balanced ¼” line input
1 balanced XLR line input
1 balanced ¼” line output
1 balanced XLR line output
Physical
Compact 1/3U rack-mount chassis
External 12 VDC power supply
Optional 3UMR rack adapter
