BIG MONITOR SOUND, ULTRA-COMPACT DESIGN
Dont be fooled by Reveal 402s compact size. Decades of experience in loudspeaker design and tweaking is the foundation for creating Reveal 402. The result is a massive soundscape generated by the super-efficient 4 woofer and ultra-precise 3/4 tweeter.

EXPERTLY VOICED FOR MASSIVE SWEET SPOT
Custom tweaked by Tannoys in-house speaker guru, Dr. Paul Mills, the active cross-over filters of Reveal 402 have absolutely impeccable timing. This produces the ultimate sweet spot so that you can move around in your workspace without losing the stereo imaging of your mix as well as invite people to sit in with you during mixing sessions.

EASY SETUP OPTION WITH AUX LINK
If youre anything like us, youre not only working on mixes but also listening to your favorite music! Reveal 402 gives you the ultimate pathway for both. With the Aux Link, setting up has never been easier. Use the included mini jack cable to plug into your favorite music player and link your monitors for an instant stereo setup no need for external interfaces

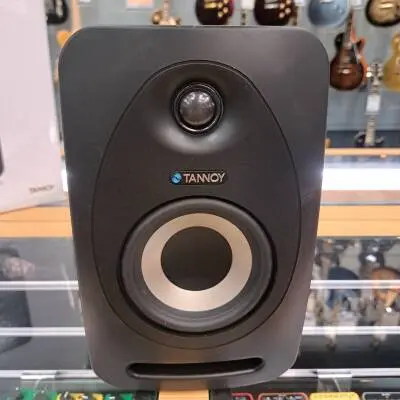

FEATURES (FRONT)

* 3/4" soft-dome "Poke-Resistant" tweeter
* 4" custom high-efficiency LF woofer
* Accurately tuned front-firing bass port -allows near-wall placement and ensures optimal LF performance

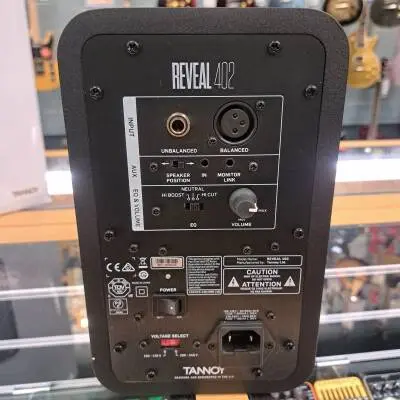

FEATURES (FRONT)

* Balanced and unbalanced inputs for maximum flexibility
* Plug in your phone /tablet for instant listening gratification
* Adjust volume and EQ to match your listening environment
* 50 Watt Bi-Amp module and active crossover filter ensures maximum power and tonal clarity
* Rubber padded base for acoustical isolation

SPECIFICATIONS

General
Frequency Response: 56 Hz -48 kHz
Max SPL101 dB

Membrane Sizes
HF: 3/4˝ Soft Dome (19 mm)
LF/Mid Range: 4 (100 mm)

Bi-amp Output Power, RMS
Power Output: 50 Watts
LF/Mid Range: 25 Watts
HF: 25 Watts
THD: < 0.9 %

Input Types and Impedances
Balanced: XLR, 20 kOhm
Unbalanced 1/4" Jack, 10 kOhm
AUX Link: Mini Jack, 10 kOhm
AUX Link Output: Mini Jack

EQ Options
HF EQ Settings: -1.5 dB HF Cut / Neutral / +1.5 dB HF Boost
Crossover Frequency: 2.5 kHz
Low Frequency Alignment: Optimized Front Port

Cabinet Dimensions
HxWxD, inches: 9.5 x 5.8 x 8.4
HxWxD, mm: 240 x 147 x 212

*Monitors Sold Separately*
