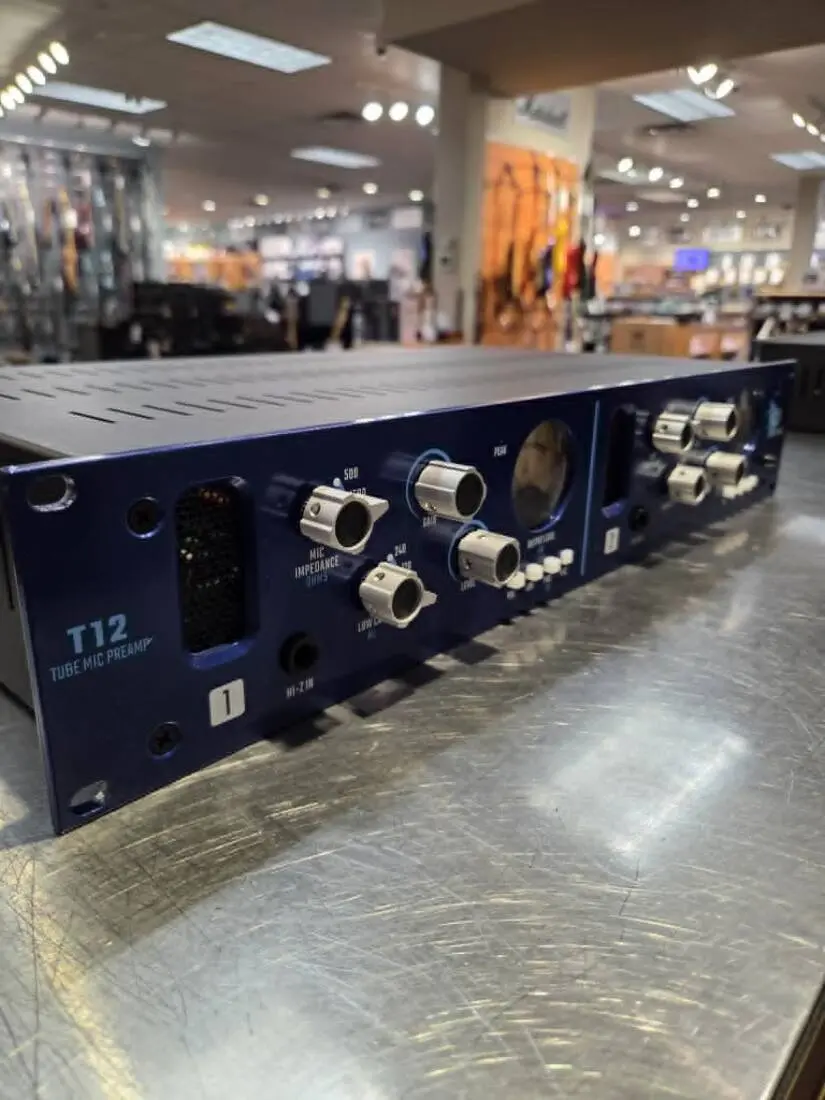

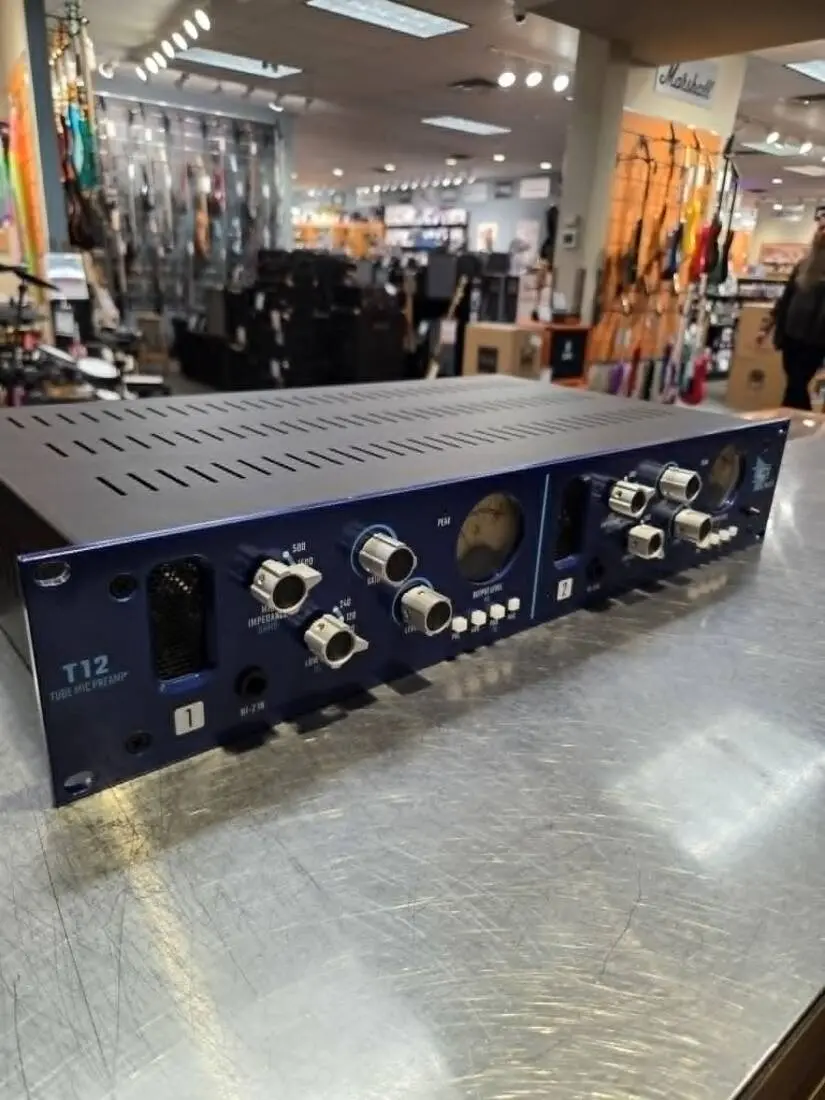

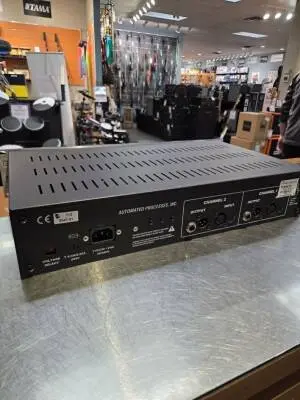

The API Select T12 is a classic 2-channel, all-tube, Class-A microphone preamplifier designed with API's proprietary AP2516 transformer in the input stage and a custom API transformer on the output stage. Built with 12AT7WC and 12BH7 dual-triode vacuum tubes, the T12 represents a new and exciting variation in API's preamplifier technology and provides the user with unique tonal options.

The T12 can handle a wide range of production applications including stereo operation. Carefully engineered to deliver classic tube performance and sound, the T12 delivers API's famous warmth, punch and clarity in an all-new way

Features
* All-tube, Class-A microphone preamplifier
* Proprietary AP2516 input transformer
* Audio circuit uses 12AT7WC and 12BH7, dual-triode vacuum tubes
* Custom API output transformer
* Variable microphone input impedance
* Switchable 48-volt phantom power
* High-impedance, unbalanced 1/4" instrument input
* MIC/HI-Z input switch
* -20dB input pad
* 11-step detented preamp gain control
* Low-cut filter with 3 fixed frequencies
* 11-step detented output trim with 0.5dB steps for precise control
* Detented controls for accurate recall and channel matching
* LED peak indicator
* Classic analog VU meters for output
* XLR and 1/4" TRS output connections

Specifications
- Input Impedance: 500Ω, 1500Ω, 2000Ω, & 2500Ω (variable)
- Output Impedance: 75 ohms, can drive 600 ohm loads
- Maximum Input Level: +24dBu with -20dB PAD engaged and gain set to 20dB
- Gain Range: 0dB to +70dB
- Maximum Output Level: +24dBu
- SNR: 98dB
- Frequency Response: 20Hz 30kHz (+0dB / -1dB)
- Power Consumption: 40W
- Dimensions: 19 x 3.5 x 12"
- Weight: 14 lbs.
