More and more synthesizer enthusiasts recognize the Eurorack as a huge playground for sound design. Collecting sound modules is like a “fun addiction” where the musicians can precisely customize their setup as they go along without spending a huge amount of money all at once. It’s a system that can grow over time into a massively versatile and totally flexible musical instrument.

Waldorf has come up with a keyboard that is both intuitive for the beginner and versatile for the professional. And it’s just as solid and elegant as all of the instruments that are built at Waldorf in Germany.

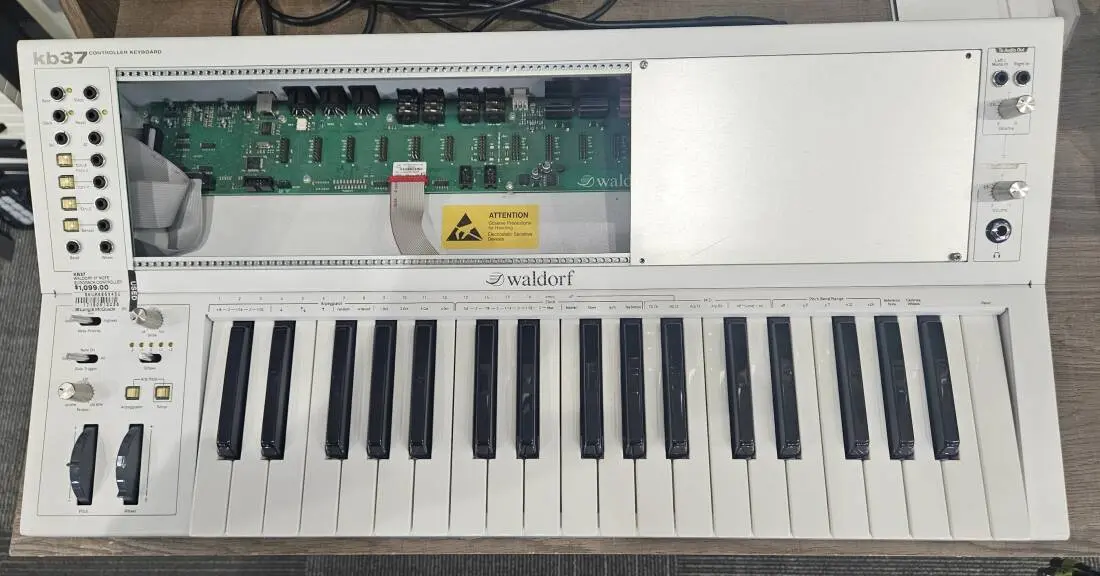

kb37 is a compact and rugged performance instrument. It can house up to 107 HP of modules in its conveniently angled panel that sits right on top of the super high-quality Fatar TP9 keyboard.

With its high-resolution and temperature stable 16-bit CV interface, it provides extremely flexible control for your modules. MIDI channels are programmable, making the kb37 the perfect partner for both studio and stage.

It provides perfect connectivity to all your modules to serve both the player and the sound designer’s desires with an array of real-time control elements such as pitch and mod wheels. The professional, full-sized 37-note keybed transmits velocity and aftertouch.

kb37 is compact and easy to transport just like any synthesizer keyboard to add style and reliability to your performing rig.

Specifications

Main features

Module space: 107 HP (543mm)
Max module depth: 65mm (92 HP), 25mm (rightmost 15 HP)
Built-in regulated power supply (+12V/1.5A, -12V/1.5A)
Headphone amplifier
Stereo line out amplifier
USB/MIDI control
Umpteen CV outputs
Arpeggiator
Duophonic mode
Clock Generator with Tap Tempo
Bus CV & Gate linkable to CV interface
Keyboard & Controls

Fatar TP9 37-keys keyboard with aftertouch
Pitchbend wheel
Modulation wheel
Glide control
Note priorities lowest, last, highest
Trigger modes Single, Note On, All
5 Octaves selector
Front Panel Connections

Stereo audio inputs with volume control for line output
Headphones output with separate volume control
9 Control Voltage outputs:
Pitch
Velocity
Aftertouch
Pitchbend wheel
Modwheel
Sensor CV output
3 CV outputs for assignable MIDI controllers (one becomes secondary pitch in duophonic mode)
3 Trigger outputs:
Gate
Clock
Reset
Rear Panel Connections

USB with optical insulation
MIDI In, Out, Thru
Sustain pedal input
Sensor/pedal input
Stereo line outputs
Expansion connector
Dimensions & Weight

Width: 656mm
Depth: 334mm
Height: 122mm
Weight: 8.5kg
