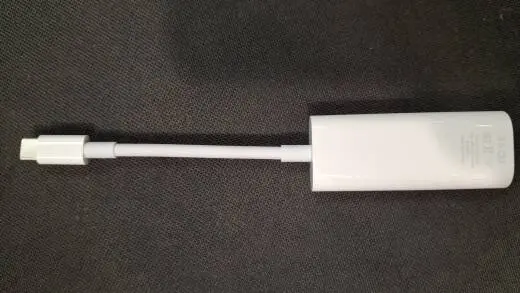

Accessories Included: Thunderbolt 2 to 3 Adapter
Thunderbolt 2 to 2 Startech cable

High-Resolution Desktop Music Production with Classic Analog Sound. (Duo, with 2 SHARC DSP processors)

With its class-leading resolution and Realtime UAD Processing, Apollo Twin sets a new standard for desktop music production. This 2x6 Mac Thunderbolt interface allows you to record with near-zero latency through the full range of UAD Powered Plug-Ins ingeniously merging classic analog tones with cutting-edge features.

With the highest dynamic range and lowest noise of any desktop interface, Apollo Twin gives you stellar 24-bit/192 kHz sound and breathtaking clarity.
Its premium mic preamps, input stage, and audio conversion are identical to the famed Apollo series, translating into rich three-dimensional recordings with exceptional depth and punch. Digitally controlled analog monitor outputs provide full resolution audio (without digital scaling) at all listening levels letting you create better mixes in real-world environments.

Key Features

• Desktop 2x6 Thunderbolt audio interface with world-class 24-bit/192 kHz audio conversion
• ]Thunderbolt connection for blazing-fast PCIe speed and rock-solid performance on modern Macs
• Unison technology offers stunning models of classic tube and transformer-based mic preamps

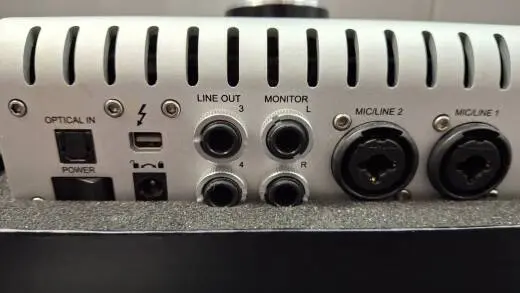

• Two premium mic/line preamps; Two line outputs; front-panel Hi-Z instrument input and headphones output
• Two digitally controlled analog monitor outputs for full resolution at all listening levels
• Up to eight channels of additional digital input via Optical connection
• Uncompromising analog design, superior components, and premium build quality
• Runs UAD Powered Plug-Ins via Audio Units, VST, RTAS & AAX64 in all major DAWs

• Sample rates up to 192 kHz* at 24-bit word length
• Up to 10 x 6 simultaneous input/output channels
• Two channels of analog-to-digital conversion via:
• Two balanced mic/line inputs
• One Hi-Z instrument input
• Six channels of digital-to-analog conversion via:
• Digitally-controlled stereo monitor outputs
• Stereo headphone outputs
• Line outputs 3-4
• Up to eight channels of digital inputs via:
• Eight channels ADAT optical with S/MUX for high sample rates, or
• Two channels S/PDIF optical with sample rate conversion
• 64-bit device drivers
• PCIe audio drivers

• Two high-resolution, ultra-transparent, digitally-controlled analog mic preamps
• Front panel and software control of all preamp parameters
• Low cut filter, 48V phantom power, 20 dB pad, polarity inversion, and stereo linking

• Digitally-controlled analog monitor outputs maintains highest fidelity
• Independently-addressable stereo headphone outputs
• Independently-addressable line outputs 3-4 can be used for additional cue mix
• Front panel control of monitor levels and muting

• Two (DUO) SHARC DSP processors
• Realtime UAD Processing on all analog and digital inputs
• Same features and functionality as other UAD-2 devices when used with DAW
• I

  Console application:
  • Enables tracking and/or monitoring with Realtime UAD Processing
  • Remote control of Apollo Twin features and functionality
  • Virtual I/O for routing DAW tracks through Console
  • Two independent stereo Auxiliary busses
  Console Recall plug-in:
  • Saves Apollo Twin configurations inside DAW sessions for easy recall
  • Facilitates control of Apollo Twin monitoring features from within the DAW
  • VST, RTAS, AAX 64, and Audio Units plug-in formats
  UAD Meter & Control Panel application:
  • Configures global UAD settings and monitors system usage
  Other

  • Attractive and durable desktop form factor
  • Locking power supply prevents accidental disconnection
  • Easily updateable firmware
  • One year warranty includes parts and labour
  Apollo Twin System Requirements:

  • Apple Mac computer with available Thunderbolt port
  • Mac OS X 10.8 Mountain Lion or 10.9 Mavericks
  • /li]
  • Compatible VST, Audio Units, RTAS, or AAX 64 plug-in host application software
  • 2 gigabytes available disk space
  • Thunderbolt cable (sold separately)
  Dimensions
  • Width 6.31"
  • Height 2.60"
  • Depth, Chassis Only 5.86"
  • Depth, Including Knob & Jack Protrusions 6.20"
  • Weight (bare unit) 2.35 pounds
  Package Contents
  • Apollo Twin Unit (DUO)

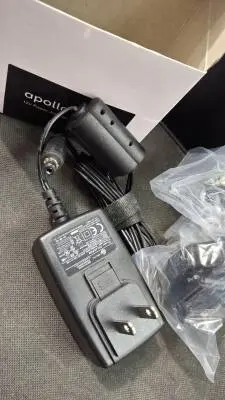

  • External Power Supply with (4) changeable AC connectors supporting USA, Europe, UK, Australia, China
  • URL Card
