Accessories Included: Power Cable

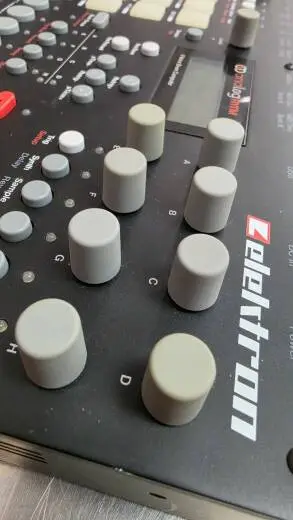

The Analog Rytm from Elektron is an eight-voice drum machine that marries the sounds and sensibilities of analog generated sounds with digital samples. Each voice accesses dedicated analog circuits, fine-tuned for generating specific analog drum sounds. For additional flexibility, each voice can also be combined with customizable samples.

Multiple tools are available for shaping the sound, with every voice having its own analog multimode filter and analog distortion circuit. Reverb and delay send effects add additional shaping possibilities, and an analog compressor and analog distortion on the master channel apply the requisite vibe to the final output.

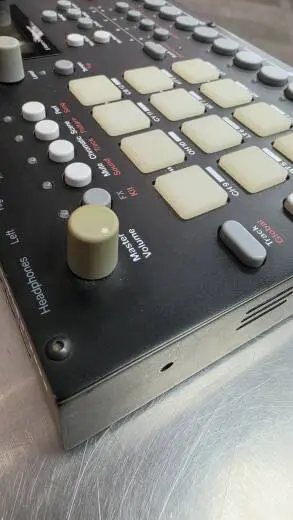

The twelve back-lit, velocity and pressure-sensitive drum pads provide a quick way of creating rhythms without stifling spontaneity. The built-in step sequencer allows for manipulating sounds on a per-step basis. The combination of drum pads and step sequencing gives both instant results and the opportunity for detailed editing.

Features:

* Eight drum voices
* Each voice features an analog percussion sound generator, sample playback, analog multimode filter and analog distortion
* Twelve velocity and pressure-sensitive pads
* Analog master compressor and distortion
* Reverb and delay send effects
* Elektron step sequencer
* Chromatic, performance, and scene modes
* Performance-oriented beat control

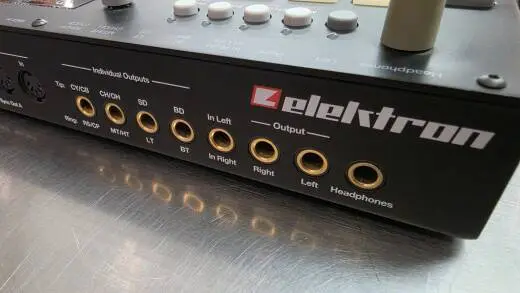

* Individual voice outputs

Specifications:

DRUM VOICE FEATURES - PER VOICE
Fully analog signal path
- 1 specialized analog percussion sound generator
- 1 sample playback engine
- 1 analog overdrive circuit
- 1 2-pole analog multi-mode filter
- 1 panning VCA pair
- 1 filter envelope
- 1 amp envelope
- 2 individual effect sends
- 1 assignable LFO
- 1 dedicated LFO fade envelope

STORAGE
- 128 Projects (+Drive)
- 128 Kits per Project
- 128 Patterns per Project
- 16 Songs per Project
- 4096 Sounds (+Drive Sound Library)
- 128 Sounds per Project
- 127 Samples per Project
- 1 GB +Drive sample storage
- 127 factory samples

EFFECTS
Send Effects
- Delay
- Reverb
Master effects
- Analog stereo distortion
- Analog stereo compressor

SEQUENCER
- 12 drum tracks
- 1 FX track
- Up to 64 steps per pattern
- Individual track lengths
- Trig mute, accent, swing, slide functions
- Micro timing
- Parameter locks
- Chromatic mode
- Scene mode
- Performance mode
- Sound-per-step change
- Assignable Retrig
- Instant Pattern, Kit and Sound reload
- Full real-time control

HARDWARE
- 12 velocity, pressure sensitive, and backlit pads
- 12232 pixel backlit LCD
- MIDI In/Out/Thru with DIN Sync Out
- 2 1/4" impedance balanced main out jacks
- 4 1/4" dual mono separate voice out jacks
- 1 1/4" audio in stereo jack
- 1 1/4" stereo headphone jack
- 48 kHz, 24-bit D/A and A/D converters
- Flash-EEPROM upgradable OS
- USB 2.0 port

INPUTS
Unbalanced audio
- Input level: +15 dBu maximum
- Audio input impedance: 9 k Ω

OUTPUTS
Balanced audio
- Headphones out level: +15 dBu (55 Ω)
- Main outputs level: +15 dBu
- Output impedance: 440 Ω unbalanced

POWER REQUIREMENTS
- Recommended Power Supply: 12 VDC, >2 A
- Unit Power Consumption: 14 W typical, 20 W maximum

PHYSICAL SPECS
- Dimensions (WxDxH): 13.4 6.9 2.4" (340 176 63 mm), including power switch, knobs and rubber feet
- Weight: 5.3 lb (2.4 kg)
