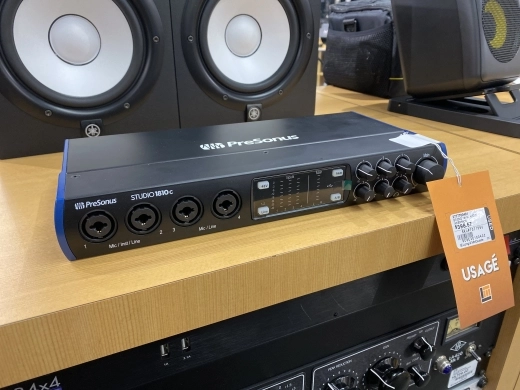

PreSonus - STUDIO 1810C

Description

Designed for creative electronic music production.

Ideal for producers and small bands who want to record audio from a wide range of sources. A complete, all-in-one recording package, the Studio 1810c offers control-room integration with included Studio One Artist music production software and free UC Surface control software and is backward compatible with USB 2.0 and 3.0 connections.

The 18-in, 8-out Studio 1810c audio interface features USB-C computer connectivity and records up to 18 simultaneous inputs, including 4 microphone inputs with XMAX mic preamps, 4 dedicated line inputs, 8 channels of ADAT Optical input (4 channels at 96 kHz), and S/PDIF inputs. In addition to the main L/R outputs, you get four DC-coupled line-level outputs that can send control voltages. You also get two headphone outputs with A/B switching for monitoring different mix streams. A built-in MIDI interface enables connection to a keyboard, sound module, or control surface.

Features

Input/Output
* Simultaneous I/O up to 18 inputs/8 outputs (8x6 at 192 kHz)
* 2 mic/instrument/line inputs with XMAX Class A mic preamps
* 2 mic/line inputs with XMAX Class A mic preamps
* 4 balanced 1/4" TRS direct-to-ADC line inputs
* 8 channels of ADAT Optical input (4 channels at 96 kHz)
* 2 balanced 1/4" TRS main outputs
* 4 balanced 1/4" TRS line outputs for monitor mixing
* 2 stereo headphone outputs with the same mix or independent mixes
* MIDI In/Out
* Stereo S/PDIF digital I/O
* 1 USB-C 2.0 port

Integrated Software
* Studio One Artist for Mac and Windows
* UC Surface control software for Mac, Windows, iPad, and Android
* Studio Magic Plug-in Suite

Meters, Controls, and Features
* 18x6 onboard DSP monitor mixer
* Front-panel mute and level controls for main outputs
* True +48V phantom power for condenser microphones (global)
* 6 ladder-style 8-LED level meters (4 input, 2 main output)

Physical
* Road-rugged construction with all-metal chassis and metal knobs
* Dimensions (H x D x W): 44 mm x 317 mm x 140mm (1.75" x 12.5" x 5.5")
* Weight: 1.45 kg (3.2 lbs)
