Sorry, this item is not available for purchase

Gear Hunter

Zoom - ZG3XN

SKU: 497130 Model: ZG3XN Serial: C3009340
Quantity Available: 1 Condition: Used

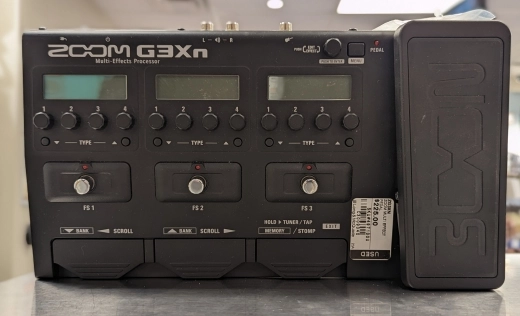

Zoom - ZG3XN
Zoom - ZG3XN 2

Buy From Store

 Pick up at the store only. Contact London North Ontario

 This product may not come in original packaging.

You are looking at serial C3009340

We have 3 of these online.

Compare all 3

Description

The G3Xn is a genre-defying multi-effects processor that gives you the versatility you need to experiment with new sounds and playing styles. Its built-in expression pedal, 80 second Looper, faithful amp and cabinet emulators, and extensive selection of effects and patches make it an essential addition to any pedalboard. The G3Xn is pre-loaded with 70 DSP effects (68 effects, 1 looper pedal, and 1 rhythm pedal), plus 10 realistic amp/cabinet emulators. The G3Xn has been loaded with essential guitar sounds like overdrive, distortion, compression, EQ, delay, reverb, flanging, phasing, vibrato, and chorusing. Unique multi-effects such as Seq Filter, Reverse Delay, HD Hall, and OSC Echo are also included.

Create Complex Signal Chains
Use up to seven effects and amp/cabinet models simultaneously, chained together in any order you like. It's like having hundreds of fully loaded pedalboards all in one compact and easy-to-use device.

Accurate, Realistic Amp and Cabinet Emulation
Choose from five classic amp models and adjust the sound exactly as you would with the knobs and switches of the real thingand then pair your amp with one of the five new cabinet emulators to complete the sound. Plus, you can download even more.

75 Custom-Crafted Patches and Counting
Recreate essential guitar tones and pioneer new territory with 75 custom-designed patches created exclusively by Zoom guitarists. Use these patches to emulate the iconic sounds of Eddie Van Halen, Jimi Hendrix, Jimmy Page, Carlos Santana, Michael Schenker, and Brian May or explore something completely brand new.

Fast and Intuitive Editing
The G3Xns switches and knobs give you enhanced control and have the responsive, hands-on feel of a standard stompbox. The G3Xn combines three LCD displays to show whole effect-chains at a glance, making it easy to add, delete, or change the order of effects quickly. Plus, you can store up to 150 of your custom effects-chains as patches.

Built-In Expression Pedal
The G3Xn features a built-in expression pedal that provides real-time control over volume, tone, or selected effects parameters, with three stompbox-style footswitches to kick effects in and out on the fly.

Practice and Perform
There are 68 built-in rhythm patterns included with the G3Xn, making it the perfect practice rig and enabling "one-man band" performances. An onboard Looper (which can be used with the rhythm patterns) allows you to record and overdub phrases up to 80 seconds long through the effects of your choice. A built-in chromatic tuner lets you bypass the currently selected patch while tuning, or mute the signal altogether.

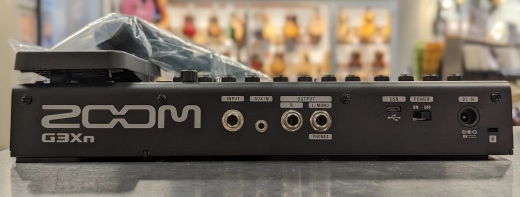

Inputs and Outputs
The G3Xn can be easily integrated into any live performance or studio rig. In addition to a standard guitar input, there's an auxiliary stereo input for connecting smartphones or music players. It also includes a dedicated headphone jack for practice and dual outputs for mono or stereo L/R connection to guitar amps, PA systems, and audio interfaces.

The Mic On/Off feature lets you optimize the G3Xn for use with a real amp and cabinet (Mic Off) as well as optimize for playing through a PA system or recording direct with amp and cabinet emulators (Mic On).

Features At A Glance:

* 70 (68 effects, 1 looper pedal, and 1 rhythm pedal) onboard high-quality digital effects, including distortion, overdrive, EQ, compression, delay, reverb, flanging, phasing, and chorusing
* 5 new amp emulators plus 5 cabinet emulators
* 75 custom-designed factory patches
* Free ZOOM Guitar Lab Mac/Windows software allows downloading of additional effects and patches
* Use up to 7 effects simultaneously, chained together in any order
* 3 stompbox switches allow effects to instantly be brought in and out
* Intuitive user interface
* 3 independent editing displays
* Auto Save function for automatic saving of all patch parameters
* Onboard chromatic tuner with dedicated footswitch supports all standard guitar tunings, including open and drop tunings
* Tuner range of 435 - 445 Hz
* Stereo/mono Looper allows recording of up to 80 seconds of phrase recording
* 68 built-in rhythm patterns that can be used in conjunction with the Looper
* Tap Tempo with dedicated footswitch
* Input jack accepts standard guitar cable
* Auxiliary stereo input jack for connection of smartphones and music players
* Dual output jacks for connection to guitar amps and mono or stereo PA systems
* Dedicated stereo headphone output
* Includes Zoom AD-16 AC adapter

Specs:

Effect types: 80 (70 DSP effects, 5 amp emulators, 5 cabinet emulators)
Number of simultaneous effects:7
Number of user banks/patches: 150
Sampling frequency: 44.1 kHz
AD/DA conversion: 24-bit with 128x oversampling
Signal processing: 32-bit
Frequency characteristics: 20 20 kHz +1 dB, -3 dB (10 kΩ load)
Display: 128 x 32 dot-matrix LCD (x3)

INPUTs:
Standard monaural phone jack
Rated input level: -20 dBu
Input impedance (line): 470 kΩ
AUX IN:
Stereo mini jack (3.5 mm)
Rated input level: -10 dBu
Input impedance (line) : 10 kΩ

OUTPUTS
Output R:
Standard monaural phone jack
Output R, maximum output level:Line +5 dBm (with output load impedance of 10 kΩ or more)
L/Mono/Phone: Standard stereo phone jack (combined line/headphone)
L/Mono/Phone, maximum output level:
Line +5 dBm (with output load impedance of 10 kΩ or more)
Headphones 15 mW + 15 mW (into 32 Ω load)

Equivalent input noise:-119 dBu
Noise floor (residual noise): -100 dBu
Power: AC adapter DC9V (center minus plug), 500 mA (ZOOM AD-16)
USB: USB MIDI, USB Micro-B

Dimensions: 181 mm (D) X 318 mm (W) X 64 mm (H)
Weight:1.84 kg
