Tascam - MIXCAST 4

Description

Podcast Audio Creation Made Easy
Mixcast 4 makes professional content creation easy. For Podcast creation, live streaming, event production, or voice over, Mixcast 4 will mix and record mic inputs, internal sounds and music via the trigger pads, and external audio input from your phone or PC. Together with the TASCAM Podcast Editor software, a complete solution - including both waveform editing and sound pad control - is provided from pre-production to completion.

Improve your production workflow and inspiration
The Mixcast 4 is a one-stop workstation that allows for the recording and mixing of sound sources without complicated settings. It provides all audio-related operation and workflow needed for live-streaming, events, podcasts, and other applications. The bundled TASCAM Podcast Editor software will expand the ability to assign content and sound effects to the internal touchpads, and will allow for smooth and easy remote track arming, effects assignment, audio editing and more without the need for expertise and complexity.

Features
* Podcast production of up to 4 people: 4 mic inputs with auto-mix, 4 headphone outputs
* Invite guests and friends: Mix-Minus to connect call-ins with echo-free audio via Bluetooth, USB input or 4-pole TRRS audio cable
* Sound pads for instant sound triggering and effects

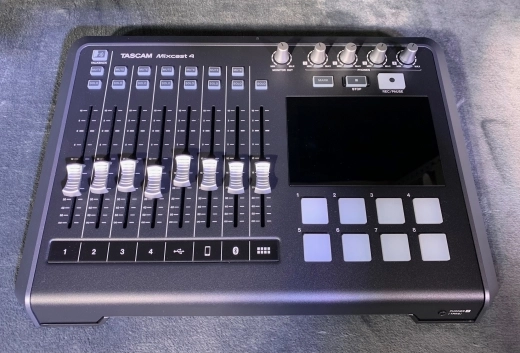

* Easy and intuitive control using the 5-inch touch panel
* Fully compatible with the dedicated TASCAM Podcast Editor software to cover the entire production workflow
* Direct internal multi-track recording to SD card (up to 14 tracks)
* 14in/2out USB audio interface
* Includes power adapter and USB Type-C to Type-C cable

Specifications
Recording media: SD cards (64 MB to 2 GB), SDHC cards (4 GB to 32 GB), SDXC cards (48 GB to 512 GB)

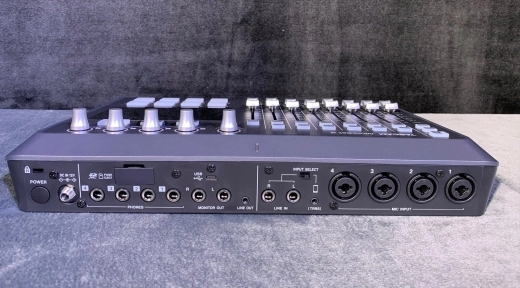

MIC INPUT jacks (1-4):
Connectors: XLR/TRS combo jacks
XLR: XLR-3-31 (1: GND, 2: HOT, 3: COLD)
TRS: 6.3mm (1/4") standard TRS jacks (Tip: HOT, Ring: COLD, Sleeve: GND)
LINE IN (TRRS) jack (CTIA standard):
Connector: 3.5 mm (1/8") 4-pole mini jack
Analog audio output ratings:
PHONES jacks (1-4)
Connectors: 6.3mm (1/4") standard stereo jacks
Maximum output: 45 mW + 45 mW (0.1% THD+N or less, into 32Ω load)
PHONES (TRRS) 1 jack (CTIA standard)
Connector: 3.5 mm (1/8") 4-pole mini jack
PHONES (TRRS) 1 output splits from PHONES 1 output
LINE OUT (TRRS) jack (CTIA standard)
Connector: 3.5 mm (1/8") 4-pole mini jack
MONITOR OUT L/R (balanced) jacks
Connectors: 6.3mm (1/4") standard TRS jacks (Tip: HOT, Ring: COLD, Sleeve: GND)
LINE OUT jack:
Connector: 3.5mm (1/8") stereo mini jack
Control input/output
Connector: USB Type-C
Formats: USB2.0 HIGH SPEED
USB AUDIO CLASS 2.0
USB MASS STORAGE CLASS
Bluetooth
Output class: 2 (about 10m unobstructed transmission distance)
Supported profile: A2DP
Recording times (in hours: minutes): Recording format: 24-bit / 48kHz WAV
14 ch: 0:35 (4 GB) / 1:10 (8 GB)
2 ch: 4:07 (4 GB) / 8:15 (8 GB)
Power consumption: 12.5 W (maximum)
Weight: 2.55 kg
Dimensions: 374.8 71.2 266.7 mm

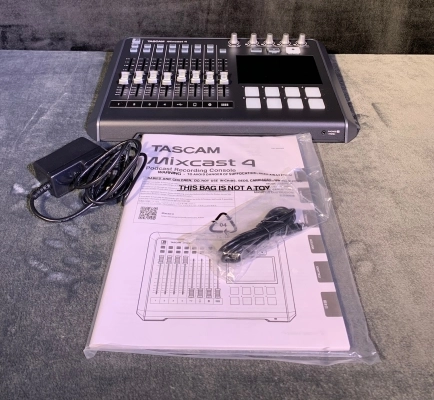

Include items: AC adapter (PS-1220E NUT), USB Type-C to Type-C cable, Owner's manual

Supported OS'
* Windows 10 (May 2021 Update) New
* MacOS Big Sur , macOS Catalina
* iPadOS 14 , iOS 14 , iPadOS 13 , iOS 13
