Sorry, this item is not available for purchase

Gear Hunter


SKU: 504190 Model: HEADRUSH-PB Serial: 832046
Quantity Available: 1 Condition: Used


Buy From Store

 Pick up at the store only. Contact Truro Nova Scotia

You are looking at serial 832046

We have 2 of these online.

Compare all 2


Featuring a finely-tuned quad-core processor and powered by exclusive Eleven HD Expanded DSP software, the HeadRush Pedalboard delivers the most versatile, realistic-sounding and responsive amplifier, cabinet, microphone and FX models ever found in a road-ready floorboard guitar FX processor. The 7-inch touch display enables you to touch, swipe and drag-and-drop to instantly create and edit your rigs in an unprecedentedly realistic and intuitive way.

7-Inch Touch Display
The heart of the HeadRush Pedalboard is the 7-inch touch display and a guitarist-centric, ultra-intuitive user interface literally touch, swipe and drag-and-drop to instantly create and edit rigs with amazing speed and accuracy. The large display also gives clear feedback when performing live, especially when tweaking tones using the expression pedal in 'Hands-Free Mode'. Everything about the HeadRush Pedalboard is designed to make it simple, fast and intuitive to jump right in and create amazing sounding rigs in seconds.

All the Connections You Need
The HeadRush Pedalboard assimilates seamlessly into your current rig with all the connections you need to handle any performance situation. Combining a 1/4-inch guitar input, (2) XLR outputs with ground lift switch, (2) 1/4-inch TRS outputs switchable between amp or line level, 5-Pin MIDI in/out, plus an onboard 1/8-inch stereo FX loop to integrate pedals and outboard gear at any point in the signal chain. HeadRush Pedalboard unites your existing equipment while opening up a world of new sonic possibilities.

The HeadRush Pedalboard is a truly convenient and compact way to bring all of the best classic vintage and modern gear you will ever need to stages near or far without breaking the bank or your back.


  • 7-Inch full colour Touch Display

  • Gapless preset switching with reverb/delay tail spillover

  • Record and re-amp via USB

  • Hands-free edit mode

  • 1/8" (3.5mm) aux input

  • Custom-designed quad-core DSP system

  • Integrate your FX and outboard gear

  • 1/4" (6.35mm) headphone output

  • Individual footswitch OLED screens

  • Road-ready steel chassis

  • MIDI input and output

  • Looper with 20 minutes of record time

  • Exclusive original boutique effects

  • Universal power supply

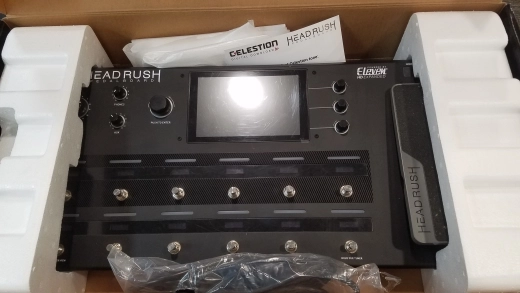

In the Box:

- HeadRush Pedalboard
- USB Cable
- Power Cable
- Software Download Card
- Quickstart Guide
- Safety & Warranty Manual

Quick Specs:

Footswitches: (12) footswitches with color LEDs & OLED displays

Pedals: (1) expression pedal

Main Display: (1) full-color LED-backlit display with touch interface, 6.9" / 176 mm (diagonal), 5.9" x 3.7" / 150 x 93 mm (width x height)
OLED Displays: (12) monochromatic OLED-backlit displays, 1.2" / 30 mm (diagonal), 1.1" x 0.4" / 28 x 11 mm (width x height)

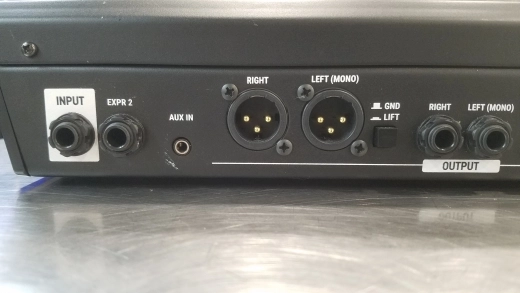

(1) 1/4" (6.35 mm) TS input (guitar)
(1) 1/4" (6.35 mm) TRS input (secondary expression pedal)
(1) 1/8" (3.5 mm) stereo input (auxiliary device)
(2) XLR outputs (with ground-lift switch)
(2) 1/4" (6.35 mm) TRS outputs (amp- or line-level)

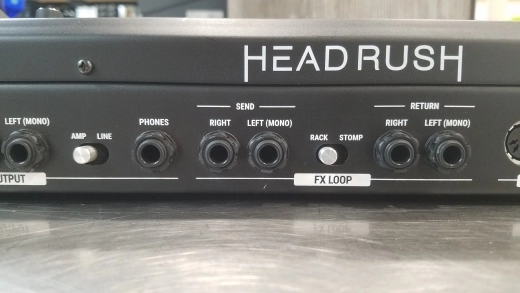

(2) 1/4" (6.35 mm) TRS inputs (sends)
(2) 1/4" (6.35 mm) TRS outputs (returns)

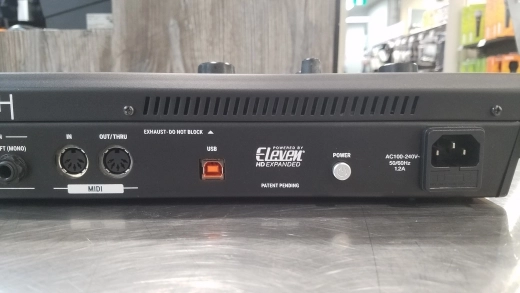

(1) 5-pin MIDI input
(1) 5-pin MIDI output/thru
(1) USB Type-B port
(1) IEC power input

Connection: IEC
Input Voltage: 100240 V, 50/60 Hz, 1.2 A

Dimensions: (W X D X H, pedal fully forward): 59.9 x 28.4 x 7.4 cm (23.6" x 11.2" x 2.9")
Weight: 7.1 kg (15.7 lbs.)
