Yorkville Sound - MC12D

Description

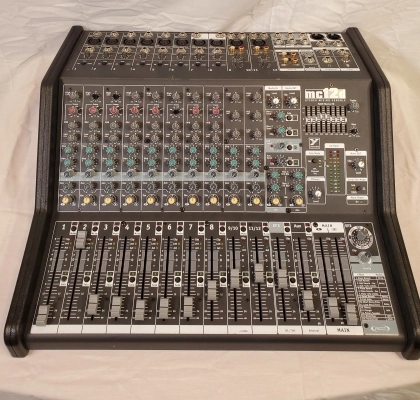

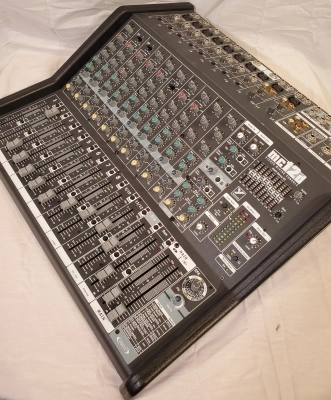

The unique shape of the MC12D passive mixer delivers a full feature set in an extremely compact desk space. Designed and built for live PA, the unique wedge shape of the mixer angle allows maximum visibility of the channel controls even in the tightest workspace.

A full feature set includes 100mm faders, 3-band channel EQ with mid sweep, Two pre and two post aux sends per channel, integrated digital effects and two highly effective 9-band master graphic EQ's (with high & low shelving) make the MC12D the ideal mixer for artists working a busy club schedule.

PGM, VGM and MC Series Passive Mixers are the designed specifically to be the ideal solution for virtually any typical live sound application.

Built for the road, all Yorkville passive mixers deliver a clean, quiet signal path with the lowest noise floor possible. Simple and effective layout with intuitive controls makes Yorkville mixers easy to integrate into any system.

Manufactured using all metal chassis, reinforced input and output jacks, standard IEC AC line cords (no adaptors or 'wall warts') ensure Yorkville passive mixers deliver unmatched reliability in even the most demanding club, installation or concert venue.

Features:
* Eight Mono mic/line channels
* 3-Band EQ with Sweep Mid and Expanded Cut Range (-20dB)
* Two Additional Stereo Channels
* 3-band EQ on Stereo Channels
* Dual RCA inputs with trim control on Stereo Channels
* Two 1/4-inch Inputs Plus Additional XLR on Stereo Channels
* Built in Compressor / Limiter with Visual Indication of Gain Reduction
* High Pass Filter & Channel Mute
* Post EQ Inserts
* PFL / AFL
* Channels 7 & 8 Have Additional High Impedance Instrument Inputs
* 100mm Faders

Other Features:
* Media In / Out with Separate Level Controls
* Four Aux Sends (Two Pre, Two Post Fader)
* Two Stereo Effects Returns with 2 x Monitor Sends & Pan Control
* Stereo 12 Segment VU Meter
* High Power Headphone Output
* Mono Zone Output with Switchable Crossover Subwoofer Output
* Two 9-Band Stereo Graphic EQ's with High / Low Shelving Filters
* BNC Lamp Output
* 16 On Board Digital Effects with Modify Control
* Unique Highly Visible Wedge Mixer Format



Specifications:
* Channels: 12
* Channel Inserts: channels 1 to 8
* Mono Channel EQ: (ch.1 to 8) High, Mid Sweep, Mid, Low
* Stereo Channel EQ: (ch.9 to 12) High, Mid, Low
* Channel Effects: All Channels
* Monitors Effects: Yes
* Balance Controls: channels 9 to 12
* Pan Controls: channels 1 to 8
* Channel Overload Protection: channels 1 to
* XLR (bal) Inputs: channels 1 to 12
* 1/4-inch Inputs: channels 1 to 12
* RCA (unbal) Inputs: 2 Stereo Sets and Rec In
* Solo Switches: All Channels, Mon1, Mon2, EFX Sends and Returns
* Mute Switches: All Channels
* Hi-Pass Switches: Channels 1 to 8
* Activity/Solo LED: All Channels
* Clip/Mute LED: All Channels
* Phantom Power: 48 V + LED indicator
* VU Meter: 2 x 12 LEDs with Floating Peak
* Headphone: Level, AFL/PFL select, 1/4" Stereo jack
* Internal Effects: 16 Bit stereo, 16 Effects with Parameter Pot
* Auxiliary Sends: 1 TRS
* Effects Send: 1 Internal, 1 External
* Effects Return: 2 stereo pairs on 1/4 inputs
* Effects Return to Main: Yes
* Effects Return to Monitor: Yes
* Record Outputs: 1 Stereo RCA
* Max Gain to Line Out -Mic Input (dB): 80
* Max Gain to Line Out -Line Input (dB): 78
* Master Stereo EQ: +/-12dB @ 160, 250, 400, 630, 1k, 1.6k, 2.5k, 4k & 6.3kHz
* Master Bass & Treble: +/-15dB shelving below 160Hz and above 6.3kHz
* Main Outputs (Line Level)- Main L/R (1/4 inch TRS, XLR)
* Monitor Outputs (Line Level): Mon 1 & 2 (1/4 inch TRS)
* Signal to Noise Ratio(dB): Greater than 100
* Frequency Response (all EQ Flat,+/-2dB): 20Hz: 20kHz
* Input Referred Noise to line out @ 150 Ohms: -123dBv
* Mixer THD (Main out w/ -10dB input): less than 0.03%
* CMRR @ 60Hz (min/typ): 54dB / 66dB
* Power Consumption (typ/max): 50 VA
* Transformer Type : Toroidal
* Finish: Scratch Resistant Vinyl-Coated Aluminum
* Console Lamp Connector: 12V DC BNC
* Dimensions (DWH, inches): 19.6x19.6x5.6
* Dimensions (DWH, cm): 49.8x49.8x14.2
* Weight (lbs/kg): 19 / 8.6
