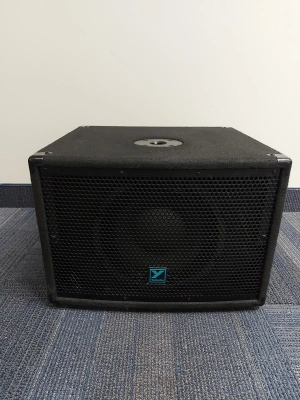

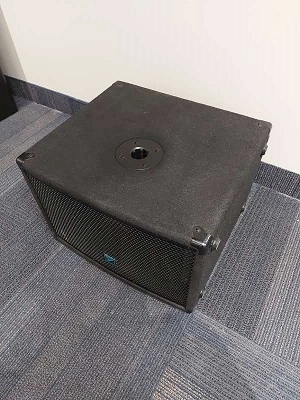

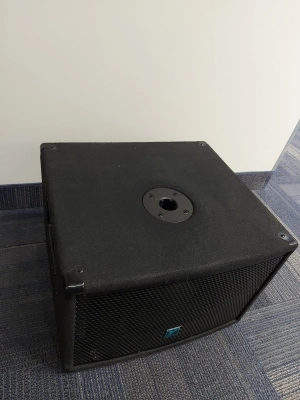

Yorkville Sound - YX10SP
Description
The ultra compact 250-watt YX10SP is the perfect subwoofer solution for small live sound or PA installations where additional low frequency support is needed. Designed to be the ideal companion for the YX10P powered full range cabinet, the YX10SP uses a high efficiency front mounted 10-inch woofer to deliver solid, even bass response.
Features:
* 250 Watt Integrated Class-D Amplifier
* 10-inch Long Excursion Woofer
* Maximum SPL: 120dB
* Integrated 80Hz Crossover Outputs
* Balanced Inputs and Outputs
* Solid Plywood Cabinet Construction
* Integrated Bar Handles & Top Speaker Mount
Specifications:
* System Type: Subwoofer
* Active or Passive: Active
* Program Power (Watts): 250 Watts
* Max SPL (dB): 120 dB (Continuous)
* Frequency Response (Hz +/- 3dB): 50-150Hz
* Crossover Frequency (Hz): 80Hz
* Driver Configuration: 10-inch ceramic
* Inputs: 1 x Combi-Jack (l/mono) 1 x XLR (right)

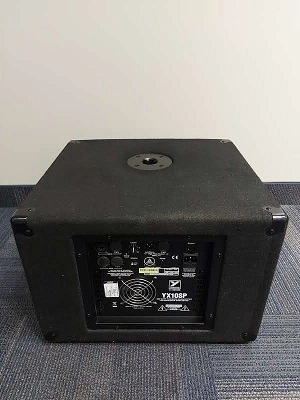

* Mixer Controls: Gain Control, Ground Lift, Integrated Crossover(80Hz High Pass Output for Top Cabinets)
* Other Controls / Features: 2 x XLR Link Thru / 2 x XLR High Pass (80Hz crossover)
* Corners: Metal
* Feet: Rubber
* Bar Handles: 2 (sides)
* Pole Mount Adapter (1 3/8 IN -3.5cm): Yes (Top)
* Enclosure Materials: 15 mm (5/8-inch) plywood
* Baffle Material: 15 mm (5/8-inch) plywood
* Grille: Custom Punched Black Perforated Metal
* Covering / Finish: Black Ozite
* Dimensions (DWH xbackW COM inches): 16.5 x 18.5 x 13.25
* Dimensions (DWH xbackW COM cm): 41.9 x 47 x 33.7
