EarthQuaker Devices - Ghost Echo

Description

Reverb conçue pour simuler une reverb vintage, elle peut ajouter un peu d'atmosphère à votre son comme elle peut l'emmener dans des profondeurs abyssales. Le bouton Attack règle le délai de l'attaque sur l'effet de reverb. Sur des nots sèches, cela donnera un effet de délai type slap-back (très court) tandis que cela grossira votre son sur des notes plus longues. Le réglage Dwell permet d'augmenter le relâchement. La version 3 de 2017 a des ampli-ops améliorés pour des meilleures performances et moins de bruit, un signal de reverb plus fort avec 2 fois plus de niveau de sortie, un réglage Dwell recalibré pouvant aller jusqu'à l''auto-oscillation, un nouveau design graphique et elle utilise un commutateur à relais silencieux pour éviter les bruits à l'enclenchement.

-------------------------------------

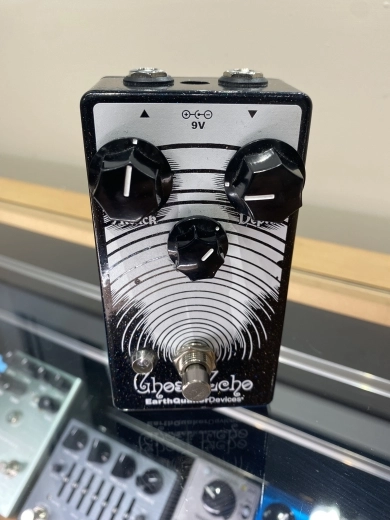

The Ghost Echo is EarthQuaker's spooky take on the haunted amp-top spring reverberation units of yesteryear. This creepy analog/digital spring reverb emulation machine boasts a terrifying 30ms 150ms of pre-delay, controllable via the Attack knob, for everything from a quick rockabilly slapback to viscous pools of ectoplasmic reverberations. When playing staccato, you'll hear the tortured trails of the reverb, resulting in more of a slapback or echo sound. Legato playing will reveal a massive ambient "depth" that fattens up the sound and look out, it's right behind you!

The Dwell control sets the length and thickness of the decay, which is to say that it controls how long the disembodied spirits of notes no longer with us float through the ether. At the maximum setting it will descend into an infinite loop of self-oscillation. The Depth sets the intensity of the reverb, which you probably know as the wet/dry mix, but we like to think of it more as how scary the overall effect is.

The Ghost Echo is true bypass and built one at a time by a team of friendly ghosts in the never-ending hall of funhouse mirrors that is Akron, Ohio, USA.

V3 UPDATES - JUNE 2017:

• Upgraded op-amps for better performance and lower noise


• Stronger reverb signal with 2x the output


• Recalibrated Dwell control capable of self-oscillations when all the way up


• New artwork


• Silent relay-based switching

Hear the Ghost Echo on Soundcloud.

Controls

Attack: Adjusts the length of the pre-delay, from 30ms at minimum to about 150ms at maximum. When the Dwell is set to self-oscillate, this will change the pitch of the oscillations.

Dwell: Adjusts the length of the decay. This will start to self-oscillate around 3 OClock, the pitch of the oscillations can be changed by turning the Attack control.

Depth: Mixes in the wet signal with the dry, unity is around noon and everything after is boosted.

Specs

Dimensions: 4.625" x 2.5" x 2.25" with knobs

Power: The Ghost Echo should be powered by a standard 9-volt DC power supply with a 2.1mm negative center barrel.

Current Draw: 80ma

Input Impedance: 10M

Output Impedance: 1K
