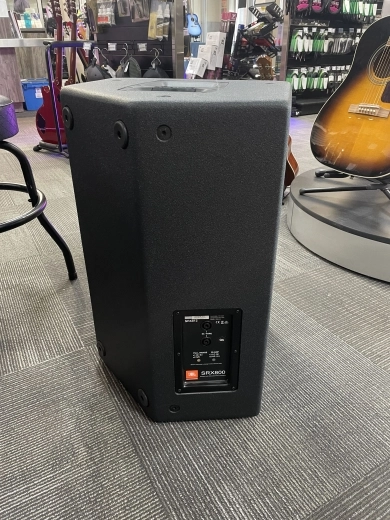

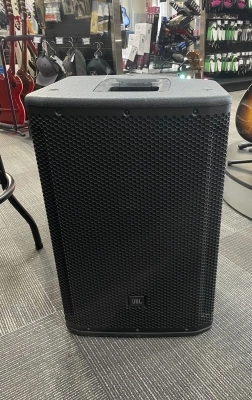

JBL - SRX812
Buy From Store
Pick up at the store only. Contact Kingston Ontario
This product may not come in original packaging.
Description
**INCLUDES SLIP COVER**
SRX812 is a two-way full range passive portable speaker with a 12" woofer made for use as a light-duty main PA, monitor, or rear or side fill. Featuring M10 suspension points and feet for both floor standing and monitor use, the SRX812 is an ideal solution for musicians, bands, and DJs, concert use, public speaking, or installations such as performance venues, corporate spaces, educational facilities or houses of worship. Tunings and presets are available for Crown ITech HD and XTI 2 amps as well as dbx VENU360 signal processors.
Features:
* Premium JBL Transducers
* Tunings available for Crown amps and dbx signal processors
* Fully supported in Audio Architect
* Ergonomically designed handles
* M10 suspension points, indexed feet, and pole/tripod mounts for a wide, flexible array of configurations
* Patented Differential Drive Technology ferrite drivers
Specifications:
* System Type: Passive 12, two-way, bass-reflex
* Maximum SPL Output: 135dB
* Frequency Range (-10dB): 41hz - 20khz
* Frequency Response (- 3dB): 57hz - 20khz
* Sensitivity (1W/1m): 95 dB
* System Power Rating: 3200W Peak, 1600W Program, 800W Continuous
* Nominal Impedance: 8 Ohm
* Connectors: NL4 Input, NL4 Loop-thru (+/-1 or +/-2 Selectable)
* Operational Modes: Passive/Bi-Amp
* LF Driver: 2272H
* HF Driver: 2432H
* Coverage Pattern: 90 x 50
* Crossover Frequency: 1.9khz
* Enclosure Material: 18mm plywood
* Monitor Angle: 50 deg.
* Suspension/Mounting: Dual 36mm pole socket, 12 x M10 Suspension points
* Handles: 3
* Finish: Obsidian Duraflex finish
* Grille: Powder coated, Obsidian, 14-gauge perforated steel with acoustically transparent black cloth backing
* Dimensions (L x W x H): 16.87" x 16.31" x 25.11" (429mm x 415mm x 638mm)
* Weight: 55.0 lbs (24.9kg)
