Zoom - LIVETRAK L-12

SKU: 508895 Model: LIVETRAK L-12 Serial: C12029774
Quantity Available: 0 Condition: Used

Zoom - LIVETRAK L-12
Zoom - LIVETRAK L-12 2
Zoom - LIVETRAK L-12 3
Zoom - LIVETRAK L-12 4

Buy From Store

 Pick up at the store only. Contact North Bay Ontario


Description

With the LiveTrak L-12, you can finally mix, record, and monitor with a single piece of gear. Its the only digital console that lets you mix your live performance and record up to 12 discrete channels - all while providing five individual custom headphone mixes.

Effortless Live Mixing - LiveTrak's 12 discrete channels (eight mono plus two stereo) have a 3-band mid-parametric EQ and 16 built-in send effects. Its eight mono channels also have a dedicated compressor. With all these controls plus its 12-segment LED metering, the L-12 offers just what you need for intuitive mixing.

Record Everything, Remix Anywhere - LiveTrak lets you record 12 discrete tracks up to 24-bit/96 kHz WAV audio to an SD card while simultaneously mixing your live show. Tracks are recorded pre-EQ and effects, so they can be transferred to your favorite DAW for further mixing and editing.

Five Custom Monitoring Mixes - Each of LiveTrak's five monitor outputs provides a unique mix, so every performer can create and save a mix that's tailored to their preferences. Its headphone amplifier delivers volume that stands up in any live environment without the need for a separate headphone monitoring setup.

USB Connectivity for Your DAW - LiveTrak is also a 14-in/4-out USB audio interface with flexible routing options, offering unlimited possibilities. Class compliant mode, which enables connection with iOS devices, is also supported.*
*Apple Lightning to USB Camera Adapter required (sold separately).

FEATURES

* 12 discrete channels (8 mono plus 2 stereo) with XLR or 1/4-inch connectivity
* 14-track simultaneous recording, 12-track playback
* 14-in/4-out USB audio interface connectivity
* 5 powered headphone outputs, each with a customizable and saveable mix
* Add backing/click tracks from your computer to your live mix and recording
* RCA and TS line inputs
* 48V phantom power (channels 1-4 and 5-8)
* Hi-Z connectivity (channels 1 and 2)
* 26 dB pad (channels 3-8)
* Built-in compression control (Channels 1-8)
* Digital level meters -48 dB to -0 dB
* Master mute button
* Low-cut control
* Stereo panning
* Master and Monitor Outputs A-E
* Scene saving function, up to 9 scenes saved at a time
* 16 built-in delay and reverb effects with adjustable parameters
* Built-in slate mic
* Class-compliant mode (for iOS compatibility)
* SD card input
* Built-in metronome
* Automatic recording starting/stopping capability
* Project protection
* Import/export projects with USB 2.0 host port
* Latency adjustment for A-to-D conversion
* Compatible functions for ZOOM FS01 footswitch

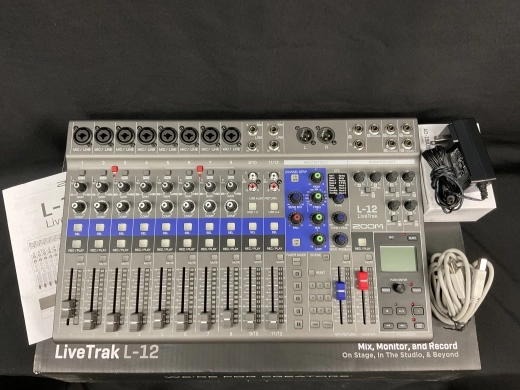

Includes:

- AC adapter (AD-19)
- USB 2.0 cable
- Quick Guide

SPECIFICATIONS

Inputs:
Mono (MIC/LINE): 8 XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)
Stereo (LINE): 2 TS phone/RCA pin (unbalanced) jacks, Maximum input level +10 dBu
Outputs:
MASTER OUT: 1 XLR jack (balanced)
MONITOR OUT: 5
MONITOR OUT A (TRS): TRS phone jacks (balanced)
MONITOR OUT A-E (PHONES): Standard Stereo phone jacks

BUSES
MASTER:1
MONITOR: 5
SEND EFX: 1

CHANNEL STRIP
COMP:
LOW CUT: 75 Hz, 12 dB/OCT
EQ:
HIGH: 10 kHz, 15 dB, shelving
MID: 100 Hz-8 kHz, 15 dB, peaking
LOW: 100 Hz, 15 dB, shelving

LEVEL METERS
Level segments:12

SEND EFFECTS: 16 types

RECORDER
Maximum simultaneous recording tracks: 14 at 44.1/48 kHz (12 channel + stereo mix); 12 at 96 kHz
Maximum simultaneous playback tracks: 12
Recording format: WAV 44.1/48/96 kHz, 16/24-bit, mono/stereo WAV format
Recording media: 16 MB-2 GB SD cards, 4 GB-32 GB SDHC cards, 64 GB-512 GB SDXC cards

AUDIO INTERFACE
44.1/48 kHz: Recording: 14 channels; Playback: 4 channels
Bit depth: 24-bit
Interface: USB 2.0

CARD READER
Class: Mass storage USB 2.0 High Speed

USB HOST
Class: USB 2.0 High Speed

SAMPLING RATE
Sampling rate: 44.1/48/96 kHz

FREQUENCY CHARACTERISTICS
44.1 kHz: -1.0 dB: 20 Hz - 20 kHz
96 kHz: -3.0 dB: 20 Hz - 40 kHz

EQUIVALENT INPUT NOISE
Actual measurements: -128 dB EIN (IHF-A) with +60 dB/150 Ω input

Display: LCD with backlight (128x64 resolution)
Power supply: ZOOM AD-19 AC adapter (DC12 V/2 A)
Power consumption: 17W maximum
External dimensions (W x D x H): 445 mm x 282 mm x 70.5 mm / 17.5" x 11.1" x 2.78"
Weight (main unit only): 2.53 kg / 5.58 lbs
