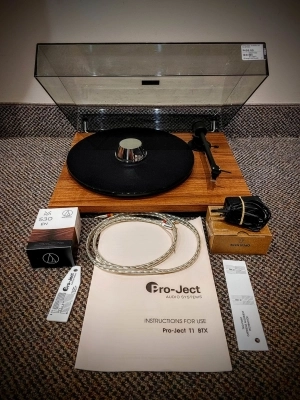

Project Audio T1 BTX
Description
The stylish CNC-machined plinth of the T1 features no plastic parts and is carefully manufactured to ensure there are no hollow spaces inside, therefore avoiding unwanted vibrations within the chassis. Carrying this philosophy through the design, the glass platter is also a heavy, zero-resonance design. Finally, the purpose-chosen turntable feet also do a good job of isolating the T1 from ambient vibrations around your hi-fi system. In the T1 the motor drives a belt-system, attached to a newly designed sub-platter, which is mounted into an ultra-precise 0.001mm main bearing with a hardened steel axle and brass bushing – just like our Essential III turntables. The tonearm new tonearm has an effective length of 8.6”. This one-piece aluminium tonearm also features low-friction bearings for absolute accuracy in use. The T1 comes with a pre-adjusted Ortofon OM 5E Moving Magnet cartridge and is ready to use right out of the box. Also super shielded, semi-symmetrical, low-capacitance Pro-Ject phono cables are included.
On top of the base model, the T1 BT features a built-in phono stage and a BT transmitter for wireless music streaming to your favourite BT speakers and headphones.
Features
Belt-driven
Built-in phono stage and BT for wireless use
Anti-resonant sub-platter design
Heavy 8mm, zero-resonance blasted-glass platter
Precision CNC‘d heavy full chassis: No hollow spaces, no plastic
Ortofon OM5e moving magnet pickup
8,6“ highly precise and light aluminium tonearm
Low friction, vibration free tonearm bearing
One-piece tonearm design with integrated headshell
Super shielded, semi-symmetrical, low-capacitance Pro-Ject phono cables
Vibration absorbing feet
Elegant dustcover with adjustable hinges
Available in Walnut
Hand-made in Europe
Speed 33,45 (manual speed change)
Principle Belt drive
Speed variance 33: 0.7% 45: 0.6%
Wow & Flutter 33: 0.25% 45: 0.23%
Platter Heavy 8mm, blasted-glass platter with felt mat
Main bearing Stainless steel/brass
Signal to noise 65dB
Tonearm 8.6” aluminium
Effective arm length 218.5 mm
Overhang 22.0 mm
Effective tonearm mass 8.0 g
Counterweight for mass 5 - 10g (pre-mounted)
Tracking force range 0 - 50mN (17.5 mN pre-adjusted)
Outputs RCA Line, RCA Phono, BT
Included accessories dustcover, feltmat, power supply, high-quality phono/line RCA cable
Built-in Power Supply 110 - 240V/50, 60Hz; 15 V DC 800mA
Power consumption 3 Watt max
Dimensions 415x100x335 mm (WxHxD)
Weight 3.8 kg net
