Sorry, this item is not available for purchase

Gear Hunter

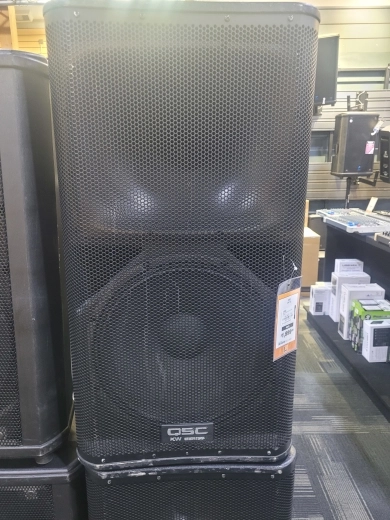

QSC - KW152

SKU: 441716 Model: KW152 Serial: g032200nk
Quantity Available: 1 Condition: Used

QSC - KW152

Buy From Store

 Pick up at the store only. Contact Calgary East Alberta


Description

2-way Powered Loudspeaker with a 15" LF and a 1.75" Diaphragm Compression Driver
The KW Series has been primarily designed for portable audio reinforcement. This includes a variety of uses in reinforcement for entertainers and presenters. The KW152 is designed to perform well on its own in full-range audio. it can be used singly, in stereo pairs or in distributed or delayed systems.

The speaker offers excellent connectivity, with XLR/TRS combo inputs and line-level RCA inputs for accepting a variety of sound sources. Up to 3 audio sources can be mixed internally and sent to the outputs. Direct XLR outputs are provided for each channel, as well as a mix output for daisy-chaining. Extensive internal DSP includes Intrinsic Correction, DEEP, and GuardRail technologies to provide terrific sonic clarity and component protection for reliable operation.

The KW152 is equipped with a 35mm pole socket that allows use on a speaker stand or on a pole over a QSC-KW181 subwoofer. The pole socket on the KW152 features the QSC Tilt-Direct system for tilting the enclosures down 7.5 degrees while on a pole. The KW152 also features eight M10 suspension points for easy installation as well as ergonomic aluminum handles for easy transportation.

Features
* 15-inch Woofer; 1.75-inch diaphragm compression driver
* 60 degree conical DMT coverage
* Maximum SPL 133 dB peak
* 1000 watt Class D power modules in all models (2 x 500 W continuous)
* Onboard mixer with two combo XLR and 1/4" inputs, and stereo RCA inputs, (three audio input sources); two direct channel outputs and single summed balanced output
* Extensive DSP featuring DEEP and Intrinsic Correction enhances system performance
* DMT (Directivity Matched Transition) ensures uniform coverage across the entire sound field
* Rugged, texture-painted birch enclosures
* Four-position Mic/Line gain (full-range models)
* Tour-grade 16 gauge steel grilles
* Comfortable ergonomic handles
* 35 mm pole sockets with Tilt-Direct
* M10 rigging points for suspended installation

Specifications
Configuration: 15-inch 2-way trapezoidal
Transducers: 15-inch cone transducer, 1.75-inch diaphragm compression driver
Frequency Response (-6 dB): 47 Hz to 18 kHz
Frequency Range (-10 dB): 44 Hz to 20 kHz
Nominal Coverage (-6 dB): 60 degree axisymmetric
Maximum SPL1: 133 dB peak
Amplifier
Power Output: 1000 W Class D (500 W LF + 500 W HF) continuous, 2000 W peak
Controls: Power, Gain A, Gain B, Channel A Input Gain (0 dB / 12 dB / 24 dB / 36 dB), LF Mode (Ext Sub/Norm/DEEP), HF Mode (Flat/Vocal Boost), Front LED (On/Off/Limit)
Indicators: Power, Signal A, Signal B, Standby, Limit, Mic (24 dB and 36 dB settings)
Connectors: Balanced female XLR-1/4" line/mic level input, Balanced female XLR-1/4" line level input, Dual Balanced male XLR full range line level out , Balanced male XLR "mix" out, Stereo RCA line level input, Remote gain control, Locking IEC power connector
Cooling: On demand, 50 mm variable speed fan
Amplifier Protection: Thermal limiting, output overcurrent, overtemperature muting, GuardRail
Transducer Protection: Thermal limiting, excursion limiting
AC Power Input: Universal power supply 100240 VAC, 50 to 60 Hz
AC Power Consumption(1/8 Power):
* 100 VAC, 2.3 A
* 120 VAC, 2.01 A
* 230 VAC, 1.13 A
Enclosure
Material: 15 mm painted birch plywood
Finish: Black textured paint
Grille: Black powder coated 16 gauge steel
Dimensions: 32.1" x 17.5" x 15.2" (81.6cm 44.5cm 38.6cm)
Net Weight: 64 lb / 29 kg
