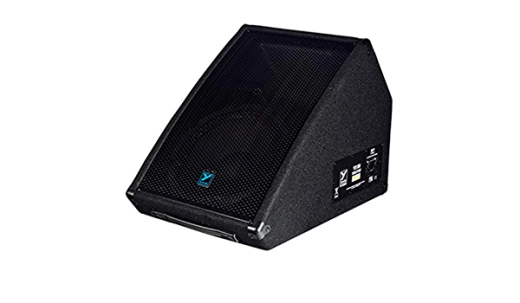

Yorkville - YX12MC 12 Inch Passive Monitor
Description
The YX12MC delivers outstanding performance in a highly cost effective monitor package. Made in North America, the YX12MC benefits from Yorkville's fifty plus years of PA enclosure design experience in the creation of this compact passive monitor enclosure.
The YX12MC uses a single 12-inch driver and an injection molded 90 x 30 ABS Waveguide horn with 1-inch throat and 1.4-inch neodymium compression driver. Yorkville's tried and true dual-bulb CTL protection system protects the horn driver's aluminum diaphragm ensuring unmatched reliability in the field. The YX12MC is built road-ready with easy-to-clean, durable black carpet covering, solid internal plywood bracing and reinforced internal component mounts.
Designed with working musicians in mind, the YX12MC uses a rugged 5/8-inch plywood cabinet construction, metal input plate, and a custom punched, perforated metal grille to protect the speaker components.
System Type - 2-Way
Active or Passive - Passive
Program Power (Watts) - 200
Biampable - No
Max SPL (dB) - 122
Driver Configuration - 12 inch / 1.4 inch
HF Driver(s) - 1.4 inch Aluminum (1 inch Throat)
HF Horn - Injection Molded ABS
HF Dispersion (H x V)- 90 x 30
HF Protection - CTL
LF Driver(s) - 12 inch Ceramic
LF Program Power(Watts)- 200
Inputs - 1/4" Jacks - 2
Inputs - Speakon 4-pin - 2
Corners - Metal
Feet - Plastic Glides
Strap Handles - 1
Enclosure Materials - 15mm (5/8inch) Plywood
Grille - Custom Punched Black Perforated Metal
Covering / Finish - Black Ozite
Dimensions - (DWH xbackW, inches) - 24 x 19.5 x 17.75 x 16
Dimensions - (DWH xbackW, cm) - 61 x 49.5 x 45.1 x 40.6
Weight (lbs/kg) - 33 / 15
