Great River Electronics - ME-1NV Single Channel Preamp

Description

The ME-1NV is a single channel microphone preamp designed to give the classic '70's vintage sound all of today's iron and performance standards! This desktop preamp unit brings to the table all of the integrity, accuracy, and sound 'tunability' as its predecessor, the MP-2NV. The ME-1NV breaks the barrier of entry for professional sound performance on a home or project studio budget.

Features:

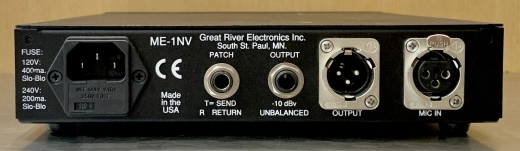

- XLR balanced in and out connections
"
-10dbV output for 'no-latency' DAW monitoring

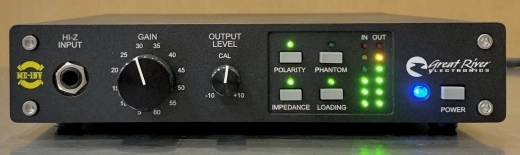

- High-Z input on front panel
- Adjustable gain in 5db steps to 60db
- Output gain from -25 to 10db; maximum overall gain 70db
- Input and output monitor meters on each channel
- 2 or 3 stages of single ended solid state amplifier gain blocks
- Gold plated switching contacts
- Front panel polarity, phantom power, input impedance, and output loading switches
- High quality, custom wound Sowter transformers
- Output transistor and transformer with heavy 70ma Class A bias
- Local regulating of each channel
- Long service life components
- TRS insert patch for compressor or equalizer ahead of the output amplifier
- 110, 220 volts, either 50 or 60 Hz operation with external switching
