Gear Hunter

Versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App.
Receive state-of-the-art live sound featuring Sennheiser's renowned e 835 capsule on a lightweight handheld transmitter with integrated mute switch.

Features
* Digital wireless eliminates noise, interference and static bursts
* UHF transmission greatly enhances range, reliability and scalability
* Mobile App streamlines setup and operation and eliminates complicated menus
* Automated setup creates reliable connections with minimal time and effort
* Up to 2,240 selectable frequencies
* Lithium Ion battery pack delivers up to 12 hours of operation (up to 8 hours of operation with AA batteries)
* 56 MHz Bandwidth will allow for up to 90 channels
* Preserves every detail of even the most dynamic per formances with 134 dB transmitter dynamic range

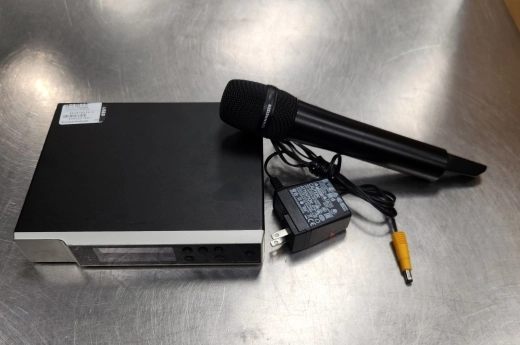

Set Includes

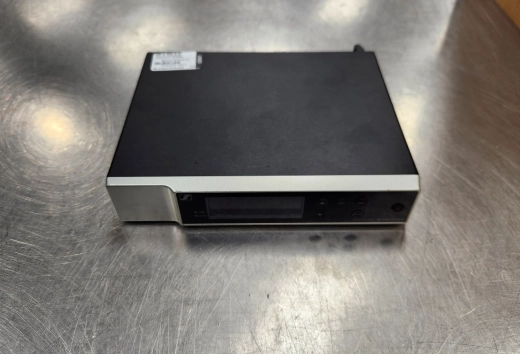

* EW-D EM rack receiver

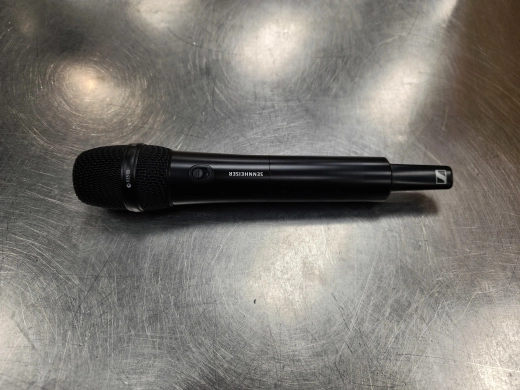

* EW-D SKM-S handheld transmitter
* MMD 835 microphone module
* 2 rod antennas
* Power supply

Specifications
EW-D SKM-S Handheld Transmitter
Input voltage: 2.0 - 4.35 V
Input current: < 300 mA
Power supply: 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack (not included)
Occupied bandwidth: 200 kHz
Transmit power (radiated):
* Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP)
* BLE: max. 10 mW EIRP
Dimensions: 50 x 268 mm (incl. MMD 835 microphone module) / 40 x 200 mm (without microphone module)
Weight (without batteries) approx. 304 g (incl. MMD 835 microphone module)
MMD 835 (Microphone Module)
Transducer principle: dynamic
Sensitivity: 2.1 mV/Pa
Sound pressure level: 154 dB SPL
Pick-up pattern: cardioid
EW-D EM (Rack Receiver)
Input voltage: 11 - 13 V
Input current: < /= 300 mA
Transmit power (radiated): BLE: max. 10 mW EIRP
Audio output power: 18 dBu max.
Dimensions: 212 x 44 x 189 mm
Weight: approx. 1000 g (without antennas and power supply)
