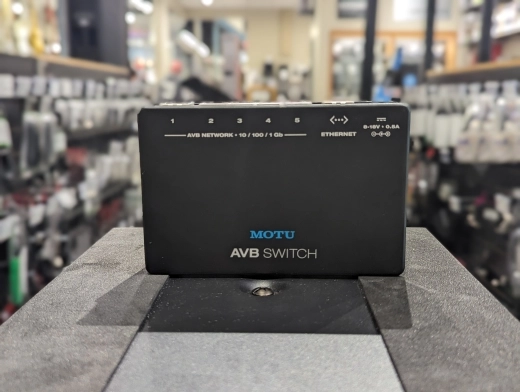

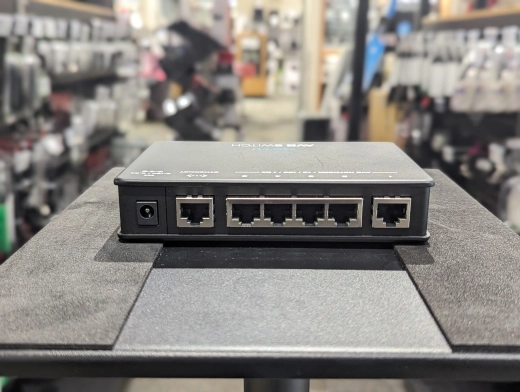

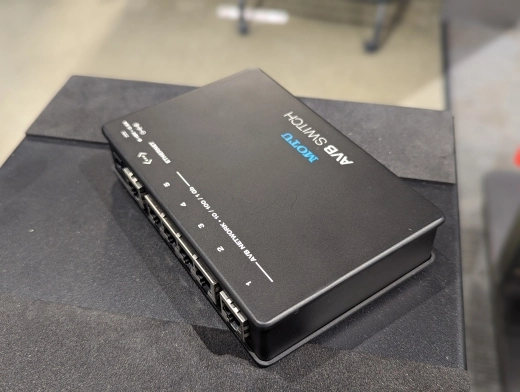

MOTU - AVB SWITCH

Description

Use the MOTU AVB Switch for all your AVB needs
The MOTU AVB Switch™ allows you to quickly and easily build an AVB-compliant Ethernet network for audio (and video), with six 1‑Gigabit AVB ports for any AVB devices (even other switches) and support for standard Ethernet operation on the same network. Enjoy the many benefits of AVB, including plug-and-play operation, guaranteed quality of service, and self-regulated network resource management.

FEATURE SUMMARY

Standard AVB switch
Industry standard IEEE 802.1 AVB Ethernet switch.

Plug-and-play
Supports automatic device discovery and network bandwidth management among connected AVB devices. No IT expertise required.

Standard cabling
Use standard CAT-5e or CAT-6 Ethernet cables up to 100 meters.

1-Gigabit operation
Supports high audio channel counts and very low latency.

Guaranteed quality of service
All existing audio and video streams are maintained, regardless of other network traffic.

Unified clocking and sync
Network-wide clock and sync accurate to nanoseconds.

Support for Ethernet
Bridging to standard ethernet devices like the Apple AirPort® or other Wi-Fi routers, Ethernet hubs, and even entire Ethernet networks in your home, office or studio. You can also designate any port for non-AVB operation, if needed.

TECHNICAL SPECIFICATIONS

AVB ports: 6
Ethernet ports: 6
Operational bandwidth: 10 / 100 / 1 Gigabit
Power: 12-18V DC * 0.5A * tip positive
Supported protocols:
gPTP - 802.1AS
MVRP - 802.1Q (VLAN 2 only)
MSRP - 802.1Q (Class A and B)

Dimensions
Length: 5.75 in / 14.6 cm
Width: 3.6 in / 9.1 cm
Height: 1.25 in / 3.2 cm
