Yorkville Sound - YX15

Description

The YX15 delivers outstanding performance in a highly versatile full range loudspeaker built for applications where higher power is required. Engineered in North America, the YX15 benefits from Yorkville's forty plus years of PA enclosure design experience in the creation of this high-value general-purpose passive 15-inch and horn loudspeaker enclosure.

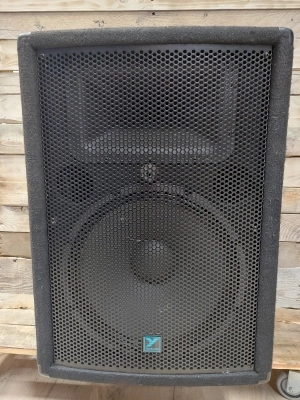

The YX15 cabinet uses a single 15-inch driver and an injection molded 90 x 30 degree horn with 1-inch throat and 1.4-inch Celestion neodymium compression driver. Yorkvilles tried and true dual-bulb CTL protection system protects the horn drivers aluminum diaphragm ensuring unmatched reliability in the field. The YX15 is built road-ready with easy-to-clean, durable black carpet covering, solid internal plywood bracing and reinforced internal component mounts.

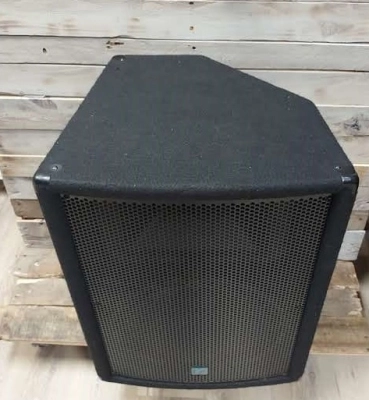

Designed with working musicians in mind, the YX15 offers rugged 5/8-inch plywood cabinet construction, all metal bar handles, metal input plate, integrated speaker mounts and a custom punched, perforated metal grille to protect the speaker components. A modified trapezoidal shape ensures the YX15 can function equally as well as a front-of-house or monitor speaker.

Features:
* 300 Watt Full Range Loudspeaker
* 15-inch Woofer
* 1-inch Compression Driver (1.4-inch Voicecoil)
* Designed for Front-of-House or Monitor applications
* 90 x 40 Injection Molded ABS Waveguide Horn
* Innovative Dual Bulb CTL High Frequency Driver Protection

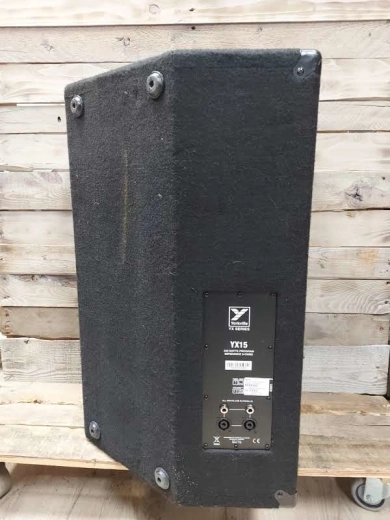

* 2 x Speakon and 2 x 1/4-inch Parallel Inputs
* Integrated All Metal Speaker Standmount Adaptor
* 5/8-inch (15mm) Plywood Construction

Specifications:
System Type - 2-Way
Active or Passive - Passive
Program Power (Watts) -300
Nominal Impedance (Ohms)- 8
Biampable - No
Sensitivity (dB @1Watt/1m) - 99
Max SPL (dB) - 124
Frequency Response (Hz +/- 3db) - 60-20k
Crossover Frequency (Hz) - 1800
HF Driver - 1.4-inch Aluminum (1-inch Throat)
HF Horn- Injection Molded ABS
HF Dispersion (H x V) - 90 x 40
HF Protection -Dual Bulb CTL
LF Driver - 15-inch Ceramic
LF Program Power(Watts) - 300
Inputs - 1/4" + Speakon 4-Pin
Corners- Metal
Feet - Plastic Glides
Bar Handles - 2
Stand Mount Adapter - 1 3/8"/3.5cm dia.
Enclosure Typre - Reflex, FOH/Monitor Convertible
Enclosure Material - 15mm (5/8inch) Plywood
Covering - Black Ozite
Grille -Custom Punched Black Perforated Metal
Dimensions (DWH+back, inches)- 15.5 x 19.25 x 27.5 x 7.5
Dimensions (DWH+back, cm) - 39.4 x 48.9 x 69.9 x 19
Weight (lbs/kg)- 45/20.4
