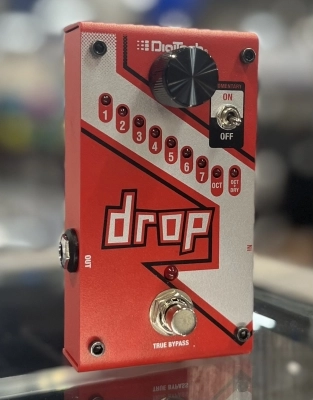

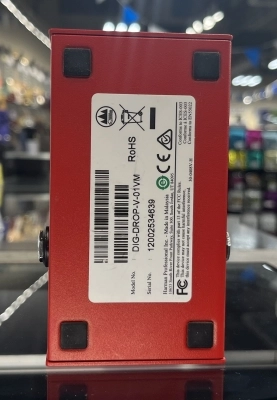

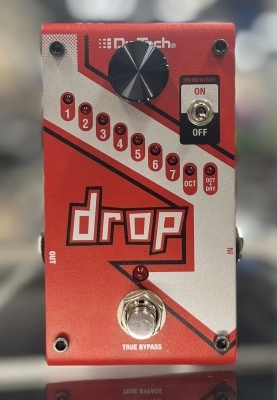

Digitech Polyphonic Drop Tuning Pitch Shifter

Description

Digitech
Polyphonic Drop Tuning Pitch Shifter
-
* MOMENTARY ON/OFF SWITCH - Selects how the effect footswitch will operate. Setting this switch to ON will cause the footswitch to act as a momentary switch (the effect will be enabled or disabled only as long as the footswitch is pressed and held). Setting this switch to OFF will cause the footswitch to act as a standard latching on/off switch.

Drop Effects Settings

Setting 1 - Transposes guitar signal down 1 semitone

Setting 2 - Transposes guitar signal down 2 semitones

Setting 3 - Transposes guitar signal down 3 semitones

Setting 4 - Transposes guitar signal down 4 semitones

Setting 5 - Transposes guitar signal down 5 semitones

Setting 6 - Transposes guitar signal down 6 semitones.

Setting 7 - Transposes guitar signal down 7 semitones

Setting OCT - Transposes guitar signal down 1 octave.

Setting OCT + DRY - Transposes guitar signal down 1 octave and adds dry signal

Note: A semitone is the smallest interval used in classical Western music, equal to a twelfth of an octave or half a tone; a half step.

FEATURES:
* Advanced Polyphonic Drop Tune Algorithm
* Drop From 1 Semi-Tone to a Full Octave
* Momentary or Latching Mode
* 9VDC Power Supply Included
* True Bypass

SPECIFICATIONS
Input: 1/4" Unbalanced (Tip-Sleeve)
Output: 1/4" Unbalanced (Tip-Sleeve)
Controls: Amount, Momentary On/Off
A/D/A Converter: 24-bit
Sampling Rate: 44.1 kHz
Power Supply: PS0913DC-01 (US, JA); PS0913DC-02 (EU, AU, UK)
Weight: 0.36 lbs. (0.163 kgs.)
Dimensions: 4.75 (L) x 2.875 (W) x 1.75 (H)
