Gear Hunter

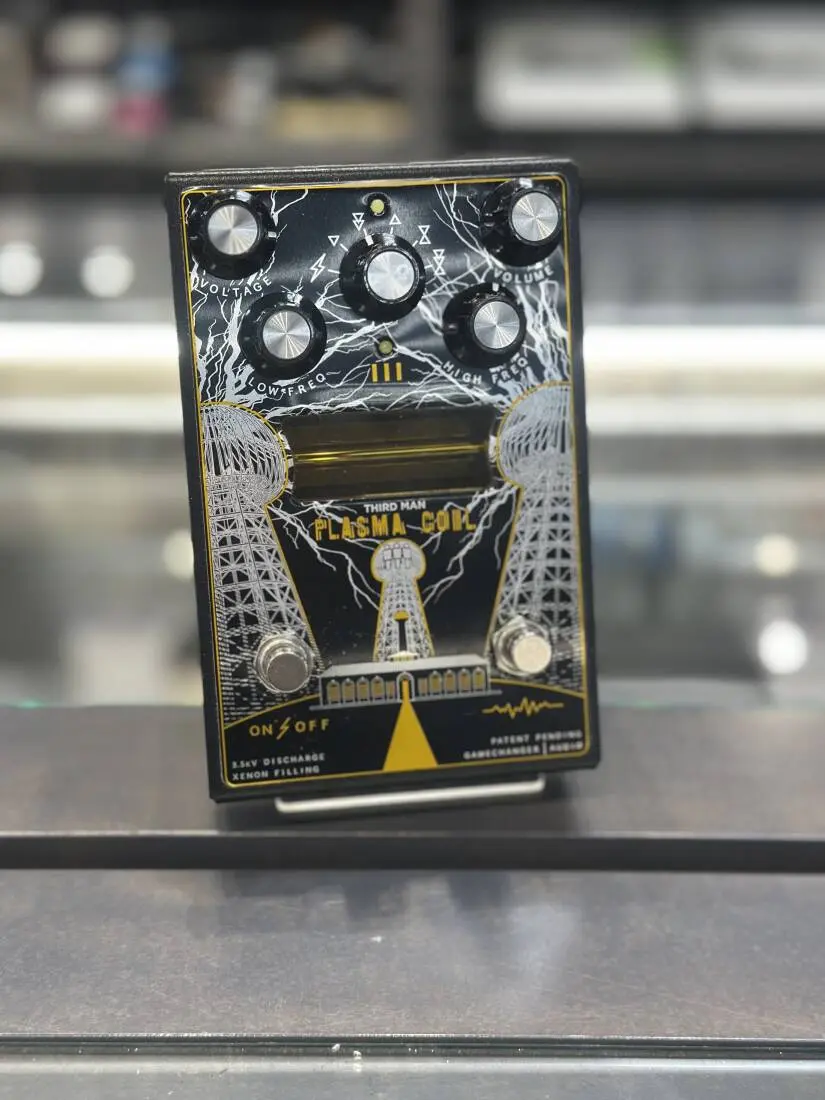

Gamechanger Audio - PLASMA COIL

SKU: 741494 Model: PLASMA COIL Serial: 35112513
Quantity Available: 0 Condition: Used

Gamechanger Audio - PLASMA COIL

Buy From Store

 Pick up at the store only. Contact Lethbridge Alberta

 This product may not come in original packaging.

You are looking at serial 35112513

We have 2 of these online.

Compare all 2


Designed together with Jack White and Third Man Records, the PLASMA Coil takes HIGH VOLTAGE DISTORTION to new heights by adding intense, gritty and glitchy octave up and down effects:

* Volume boost
* 2 subharmonic modes (bitcrush-style octave down)
* 1 upper harmonic mode (Octafuzz-style octave Up)
* 2 mixed modes (upper and lower harmonics combined)

The PLASMA Coil's octave effects are created by a unique analog circuit designed specifically for driving a high-voltage transformer. The subharmonic modes will add massive low end to higher notes and the Upper Harmonic modes will add fire and razorblades to riffs and low-tuned chords.
The PLASMA Pedal's BLEND control is removed, so you always are on 100% PLASMA.

The PLASMA Coil is even more grittier than PLASMA Pedal and the added effects make it a very expressive distortion unit.

Input Type: 1/4" Unbalanced TS
Input Impedance: 1MΩ
Max Input Level: 7Vpp (+10dBu)
Output Type: 1/4" Unbalanced TS
Output Impedance: 100Ω
Max Output Level: 7Vpp (+10dBu)
Power connector: Center negative 2.1 x 5.5 mm barrel plug (the standard 9V)
Frequency Response: 20Hz to 22kHz
Controls: True bypass footswitch button, Effect footswitch button Potentiometers: VOLTAGE, VOLUME, LOW FREQ, HI FREQ, CLEAN EQ toggle switch, Effect Latch toggle switch
Indicator: Check indicator white LED
Connectors: IN, OUT, DC input
Power Requirements: 300mA, 9VDC
Peak Power Consumption: 2.7 W
Mean Power Consumption: 1 W
Power Consumption while silent: 0.025 W
Dimensions (LxWxH): 148 x 96 x 70 mm / 5.1 x 3.8 x 2.8 in
Weight: 840 g / 1.8 lbs

*The PLASMA Coil uses standard 9V DC center negative pedal power supply of at least 250 mA.
*The expected life of the xenon tube is 10,000 to 70,000 hours of active playing. The xenon tube is replaceable.
