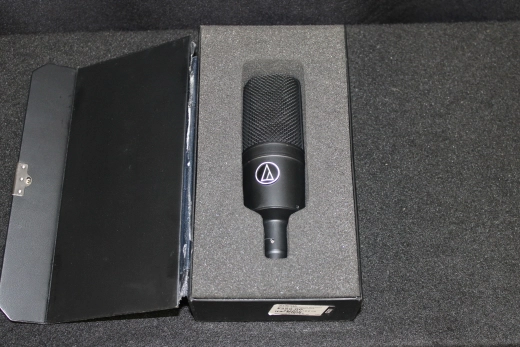

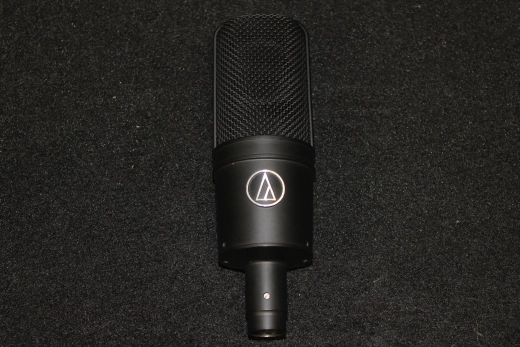

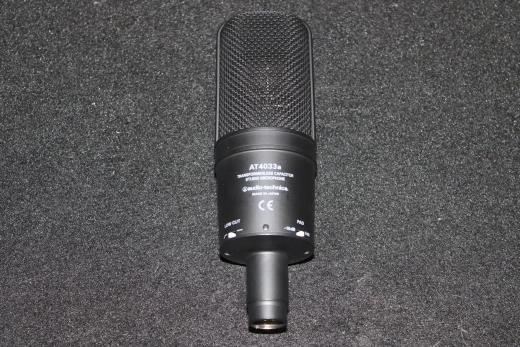

Audio-Technica - AT4033A

Description

The latest edition of the legendary AT4033 microphone, the side-address AT4033a offers low-noise, symmetrical, transformerless circuitry that results in exceptional transient response and clean output signals. A studio classic and bluegrass favorite, the AT4033 cardioid studio condenser is the microphone that broke the US$1000-barrier in its class. A strong up-front presence characterizes the sonic signature of this 40 Series pro-audio classic. The AT4033as 80Hz high-pass filter easily switches between flat frequency response and a low-end roll-off that diminishes ambient noise and popping with closely-miked vocals.

FEATURES

• Transformerless circuitry virtually eliminates low-frequency distortion and provides superior correlation of high-speed transients


• Precision-machined, nickel-plated brass, acoustic element baffle provides enhanced element stability and optimal sensitivity


• The 2-micron-thick, vapor-deposited gold diaphragm undergoes a five-step aging process so that the optimum characteristics achieved remain constant over years of use


• Floating-construction capsule assembly provides isolation from noise and vibration


• Open acoustical environment of the symmetrical housing assembly minimizes unwanted internal reflections


• State-of-the-art surface-mount electronics ensure compliance with A-T's stringent consistency and reliability standards

SPECS

ELEMENT: Fixed-charge back plate, permanently polarized condenser
POLAR PATTERN: Cardioid
FREQUENCY RESPONSE: 30-20,000 Hz
LOW FREQUENCY ROLL-OFF: 80 Hz, 12 dB/octave
OPEN CIRCUIT SENSITIVITY: -32 dB (25.1 mV) re 1V at 1 Pa
IMPEDANCE: 100 ohms
MAXIMUM INPUT SOUND LEVEL: 145 dB SPL, 1 kHz at 1% T.H.D.; 155 dB SPL, with 10 dB pad (nominal)
NOISE: 17 dB SPL
DYNAMIC RANGE (typical): 128 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO: 77 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS: 48V DC, 3.2 mA typical
SWITCHES: Flat, roll-off; 10 dB pad (nominal)
WEIGHT: 13.4 oz (380 g)
DIMENSIONS (Length x max Dia): 6.69" x 2.10" (170.0 x 53.4 mm)
OUTPUT CONNECTOR: Integral 3-pin XLRM-type
INCLUDED ACCESSORIES:
- Protective carrying case
