** This item is a trade-in, and does not contain original packaging **

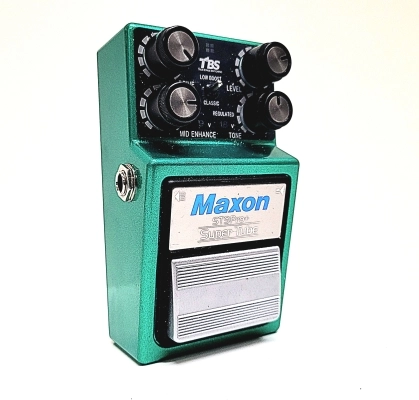

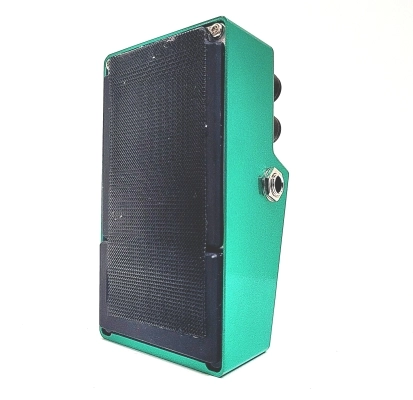

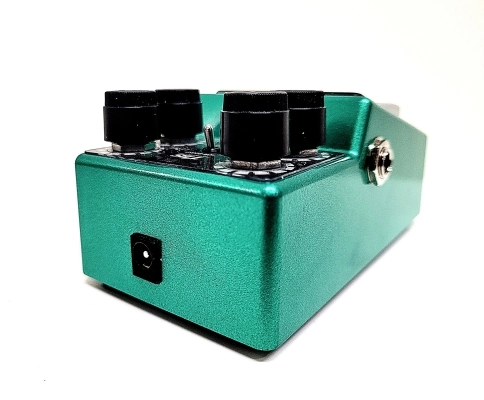

Bigger, Badder, Bolder - these are the best three words to describe the ST-9 Pro+ Super Tube.

Starting with a circuit loosely based on the classic 808 architecture, the ST-9 adds a Mid Enhance knob to control the amount of midrange boost. This knob functions similarly to an amp's presence control, boosting perceived volume and gain as it's turned up.

The Low Boost switch is the ST-9's secret weapon. This unassuming switch completely changes the character of the pedal, adding beefy low end and increased saturation via a LP filter and an alternate set of clipping diodes. If this wasn't enough, the ST-9 also offers 9- or 18-volt operation via an internal charge pump. Run at 9 for the classic 808 sound and feel or switch to 18 for increased headroom, improved dynamics, and a bigger, chunkier tone to the overdrive.

From bluesy overdrive to diabolical dirt box, the ST-9 is a devilishly diverse pedal that can punish a clean amp or turn a dirty amp into a wall of doom.

Features:

* Updated Reissue of 1980s Super Tube Screamer
* Circuit Based on classic OD-9/OD808
* Dedicated Midrange knob to dial in amount of mid boost
* Low Boost Switch adds low end punch great for single coils
* 9-volt or 18-volt regulated operation (switchable)
* True Bypass Switching

Specifications:

Input Impedance: 500k ohms
Output Impedance: 10k ohms or less
Maximum Gain: 51dB (2.2kHz)
Equivalent Input Noise: -115dB or less (IHF-A)
Control: MID ENHANCE, DRIVE, TONE LEVEL
Switch: Bypass/Effect, Voltage Switch (9V/18V); MODE Switch (CLASSIC/LOW BOOST)
Indicator: Bypass/Effect LED, 8V LED, 18V LED
Internal Circuit Voltage: 8VDC / 18VDC (DC to DC Converter)
Power Consumption: 12mA/8VDC, 36mA/18VDC
Dimensions (W x D x H): 74mm x 124mm x 54mm
Weight: 610g (including battery)
Power Supply: 6F22 / 6LR6 9V battery X 1 or Maxon AC adaptor
