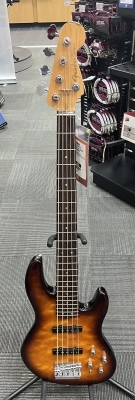

FENDER JAZZ BASS 24 V (5 STRING)

Description

Specs:
Model Name Jazz Bass® 24 V (5-String)
Model Number 026-1000-(552)
Series Deluxe Series
Colors (552) Tobacco Sunburst,
(Polyurethane Finish)

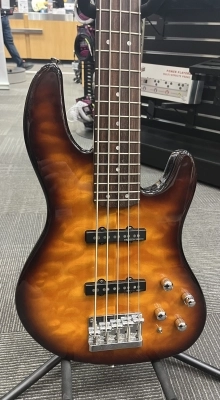

Body Alder with Quilt Maple Top

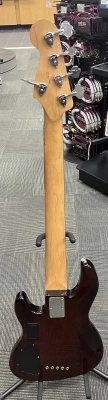

Neck Maple, Modern “C” Shape,
(Satin Polyurethane Finish)
Fingerboard Rosewood, 9.5” Radius (241mm)
No. of Frets 24 Medium Jumbo Frets
Pickups 2 Seymour Duncan® Basslines™ Single-Coil 5-string Jazz Bass Pickups
Controls Master Volume, Pan Pot, Duncan Designed BEQ3 3-Band Active EQ with:
Treble Boost/Cut: +/- 15dB @ 5.1kHz,
Mid Boost/Cut: +/- 14dB, -15dB @ 650Hz,
Bass Boost/Cut: +/- 12dB @ 30 Hz,
Mid-Scoop “Slap” Switch:
Bass Boost +5dB @ 83Hz,
Mid Cut -5dB @ 633Hz
Pickup Switching Pan Pot
Bridge 5-Saddle Steel Bridge Plate

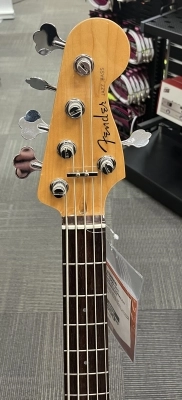

Machine Heads Hipshot® Licensed Tapered Shaft Tuning Machines
Hardware Chrome Plated
Pickguard None
Scale Length 34” (864 mm)
Width at Nut 1.875” (47.6 mm)
Unique Features Quilt Maple Top,
9 Volt Power Supply,
5-Bolt Neck Plate,
Contoured Heel for Easier Access to Upper Frets,
White Pearloid Dot Position Inlays,
Rolled Fingerboard Edges
Strings Super Bass 8250/5M, NPS, p/n 073-8250-506,
Gauges: .045, .065, .085, .110TW, .130TW (Taperwound E & B)
Accessories None
Case None
Introduced 1/2007
