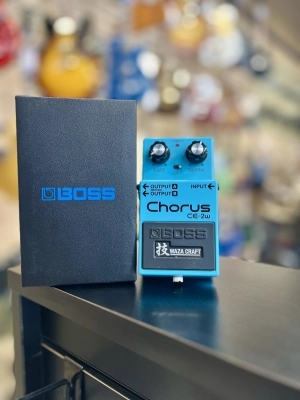

BOSS - CE-2W

Description

In 2016, to celebrate the 40th anniversary of BOSS innovation, the original analog chorus sounds are now reborn with the Waza Craft CE-2W. The CE-2Ws Standard mode faithfully recreates the classic CE-2 chorus sound, and adds an expansive new sound field with stereo output, which was unavailable in the mono CE-2. CE-1 mode fully reproduces the stereo chorus and vibrato sounds of the legendary CE-1, with the addition of variable chorus depth not available in the original pedal. To commemorate the birth of BOSS effects, the CE-2W is made exclusively in Japan, just as the original CE-1 and CE-2 were.

FEATURES

* Special edition Waza Craft pedal delivers the ultimate BOSS tone experience
* Standard mode provides a perfect reproduction of the legendary CE-2 sound
* CE-1 mode features chorus and vibrato, authentically reproducing the two stereo sound modes in the worlds first chorus pedal
* Includes new sounds not available in the original pedals, including CE-2 stereo output and variable depth for CE-1 chorus sounds
* Rate and Depth knobs provide fine sound adjustment in both pedal modes
* Premium all-analog circuitry with bucket-brigade (BBD) delay line
* Made in Japan to celebrate the 40th anniversary of BOSS effects
* BOSS five-year warranty

SPECIFICATIONS

Modes: 3 modes
- Standard
- CE-1 Chorus
- CE-1 Vibrato
Nominal Input Level: 20 dBu
Input Impedance: 1 M ohm
Nominal Output Level: 20 dBu
Output Impedance: 1 k ohm
Recommended Load Impedance: 10 k ohms or greater
Bypass: Buffered bypass
Controls:
- Pedal switch
- Standard/CE-1 Mode switch
- DEPTH knob
Indicator: CHECK indicator (Serves also as battery check indicator)
Connectors:
- INPUT jack: 1/4-inch phone type
- OUTPUT A (MONO) jack: 1/4-inch phone type
- OUTPUT B jack: 1/4-inch phone type
- DC IN jack
Power Supply:
- Alkaline battery (9V, 6LR61) or Carbon-zinc battery (9V, 6F22)
- AC adaptor (sold separately)
Current Draw: 25 mA
Expected battery life under continuous use (These figures will vary depending on the actual conditions of use.):
- Alkaline: Approx. 32 hours
- Carbon: Approx. 18 hours
Accessories:
- Owner's manual
- Alkaline battery (9V, 6LR61)

SIZE AND WEIGHT
Width: 73 mm / 2-7/8 inches
Depth: 129 mm / 5-1/8 inches
Height: 59 mm / 2-3/8 inches
Weight (including battery): 450 g / 21 lb
