Waldorf KB37

Description

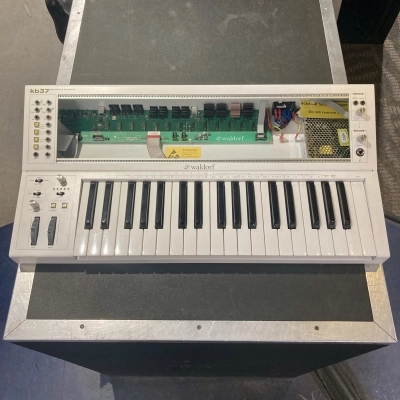

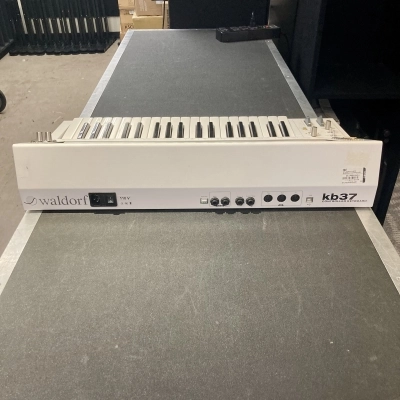

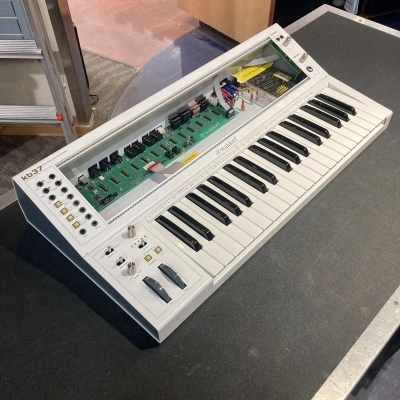

kb37 is a compact and rugged performance instrument. It can house up to 107 HP of modules in its conveniently angled panel that sits right on top of the super high-quality Fatar TP9 keyboard.

With its high-resolution and temperature stable 16-bit CV interface, it provides extremely flexible control for your modules. MIDI channels are programmable, making the kb37 the perfect partner for both studio and stage.

It provides perfect connectivity to all your modules to serve both the player and the sound designer’s desires with an array of real-time control elements such as pitch and mod wheels. The professional, full-sized 37-note keybed transmits velocity and aftertouch.

kb37 is compact and easy to transport just like any synthesizer keyboard to add style and reliability to your performing rig.


- Module space: 107 HP (543mm)
- Max module depth: 65mm (92 HP), 25mm (rightmost 15 HP)
- Built-in regulated power supply (+12V/1.5A, -12V/1.5A)
- Headphone amplifier
- Stereo line out amplifier
- USB/MIDI control
- Umpteen CV outputs
- Arpeggiator
- Duophonic mode
- Clock Generator with Tap Tempo
- Bus CV & Gate linkable to CV interface
