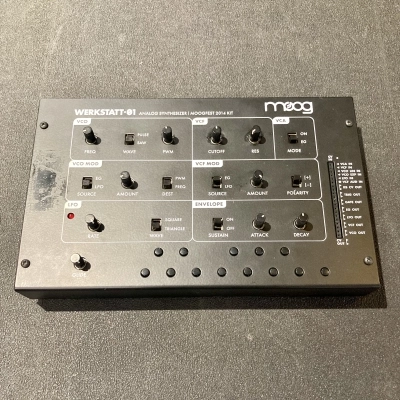

Moog Werkstatt 01
Description
The Werkstatt-Ø1: Moogfest 2014 Kit is for anyone who loves all things Moog, and for anyone else who's interested in an affordably priced synthesizer with a huge analog sound that Moog is famous for. Werkstatt-Ø1 is a patchable and compact, one oscillator analog synthesizer, one of Moog's first synthesizers designed primarily for the education. It was originally created as a kit to be used exclusively in the "Engineering VIP" workshops at the 2014 Moogfest, an annual event that pays homage to the brilliant vision and creative spirit of Robert Moog and his amazing inventions.

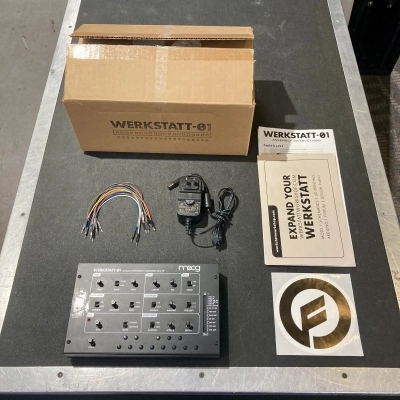

Now, thanks to an unexpected amount of requests, Moog is offering the Werkstatt-Ø1 in a non-soldering version that is ideal for young electronic musicians as a first analog synthesizer and introduction into modular patching. Assembly is required, but it's extremely simple, and the design of the Werkstatt-Ø1 also makes it ideal for those that desire to experiment with and modify analog circuits.
Since assembly is so easy, user can quickly build their very own analog synthesizer, based on some of the most classic analog Moog circuitry. Through assembly and inspired investigation, the Werkstatt-Ø1 is an excellent platform for exploring the world of analog synthesizer circuits. It is a great solution for Ableton, Cubase, Logic X, and MPC users — who can use Werkstatt-Ø1 to sample and create unique "analog" instruments within their DAW. A lifetime of experimentation, knob twisting, and sound design awaits.
OSCILLATOR SECTION
Single VCO with frequency control (8Hz to 16KHz)
Saw and square waveshapes with control for square pulse width
Envelope or LFO selectable Mod Source that can be assigned to PWM or Pitch with Amount control
Ability to PWM the square wave
FILTER SECTION
Classic 4-Pole Moog Ladder Filter with Resonance control (20Hz-20KHz)
Select between the Envelope generator and LFO as Mod Source.
Polarity switch (+/-) and amount knob for control of filter cutoff modulation
LFO SECTION
Selectable Square or Triangle waveshape with rate control (2Hz-600Hz)
VCA/AMP SECTION
Select between the Envelope Generator or ON (Drone)
ENVELOPES SECTION
Controls for Attack & Decay time with Sustain On/Off switch
KB SECTION
One octave low-note priority legato keyboard with glide control
PATCHBAY
VCA Input0V to +5V in VCA EG Mode, +/-2.5V in VCA ON Mode
VCF Input-5V to +5
VCO LINEAR FM Input +/-2.5V - NOTE: this is an inverting control input
VCO EXPONENTIAL FM Input -5V to +5V, 1V/Octave trimmable
LFO CV Input 5V to +5V - NOTE: Negative CV slows LFO more than the panel
VCF AUDIO Input Unbuffered/Unmixed AC coupled input to VCF
2x KB CV Output 3V/semitone from 1 keyboard - NOTE: Attenuate for 1V/Octave
2x TRIG Output 5 msec pulse, 0 to +5 V signal generated from low-note priority
2x GATE Output0 to +5V signal generated from low-note priority
2x EG Output0 to +5V signal, Simple ASD or AD type Envelope Generator
2x LFO Output -2.5 to +2.5V Triangle or Square wave, selected via LFO Switch
2x VCF Output-2V to +2 V signal for audio or CV uses
2x VCO Output0V to +5V VCO signal, wave selected by VCO Wave Switch

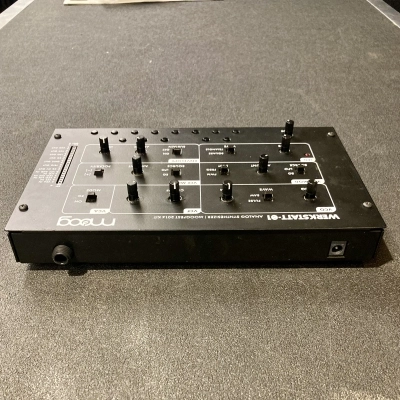

REAR PANEL
AUDIO Output Nominal +/-1.5V Signal
POWER+12VDC Center Positive with1.2A Wall transformer
POWER CONSUMPTION 1.8 Watt AVG
