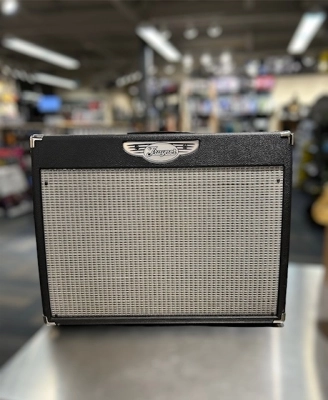

Traynor - YCV40

Description

The first guitar amp that brought the Traynor name back into the world of modern tube amps was the YCV40, and it continues on today. Real tube overdrive is provided by three 12AX7WA dual triode preamp tubes while real tube power is provided by two 5881WXT beam power tubes. The internal gadgetry in this channel switching amp provides good flexibility, but makes it very easy to get a great tone. The combination of the tube power and the Celestion speaker is magical.

Although signal-to-noise is not normally a specification that is discussed where guitar amplifiers are concerned, the ultra-quiet Custom Valve 40 makes it an issue. Experienced professional users will appreciate the auto-matching tube circuit that maintains bias balance as tubes age ensuring hum free performance. Listen carefully. Although the YCV40 has a tremendous amount of gain it remains virtually hum free.



Specifications:
Type: Tube Guitar Amplifier
Cabinet Impedance (Ohms): 8
Power @ min. impedance (Watts): 40
Minimum Impedance (Ohms): 4
Speaker Configuration - LF (Size / Power): 12 inch / 40 Watts
Inputs 2
Channel 1 - Inputs: 1/4 inch phone

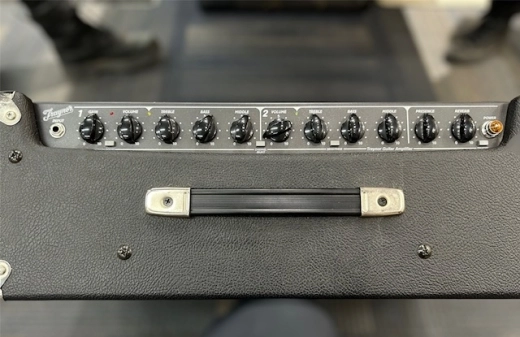

Channel 1 - Controls: Gain, Volume, Treble, Bass, Middle
Channel 1 - Switches: Boost
Channel 2 - Inputs: Shares ch 1 input
Channel 2 - Controls: Volume, Treble, Bass, Middle
Channel 2 - Switches: Channel Select, Brightness
Channel Switching: Yes
Main Tone Controls: Presence
Line Out: (type / configuration): 1/4 inch TRS / Rear (Effects Send)
Effects Volume: Yes
Effects Loop / Location: Yes / Rear
Effects Footswitch / Function: Yes / Channel Select, Boost
Internal Reverb / Effects: Spring Reverb
LED Indicators: Channel Select, Boost, Power, Standby

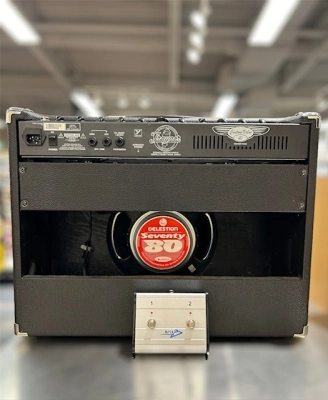

External speaker output / location: 1/4 inch / Rear
Other Features:
* Standby Switch - Activates standby mode to keep the tubes warm while the amp is not in use.
* Preamp Tube - 3x 12AX7WA Dual Triodes (Russia)
* Power Amp Tube - 2x 6L6GB Beam Power Tubes (Russia)
* DC filaments on preamp tubes eliminate hum
* Fully regulated power supply with tube rectifier emulation
* Perforated Steel Grille
Dimensions (DWH, inches): 9.5 x 23 x 18
Dimensions (DWH, cm): 24 x 58 x 46
Weight (lbs / kg): 45 / 20.4
