Yorkville - PS10P w/ Cover

SKU: 385147 Model: PS10P Serial: 7103258
Quantity Available: 1 Condition: Used

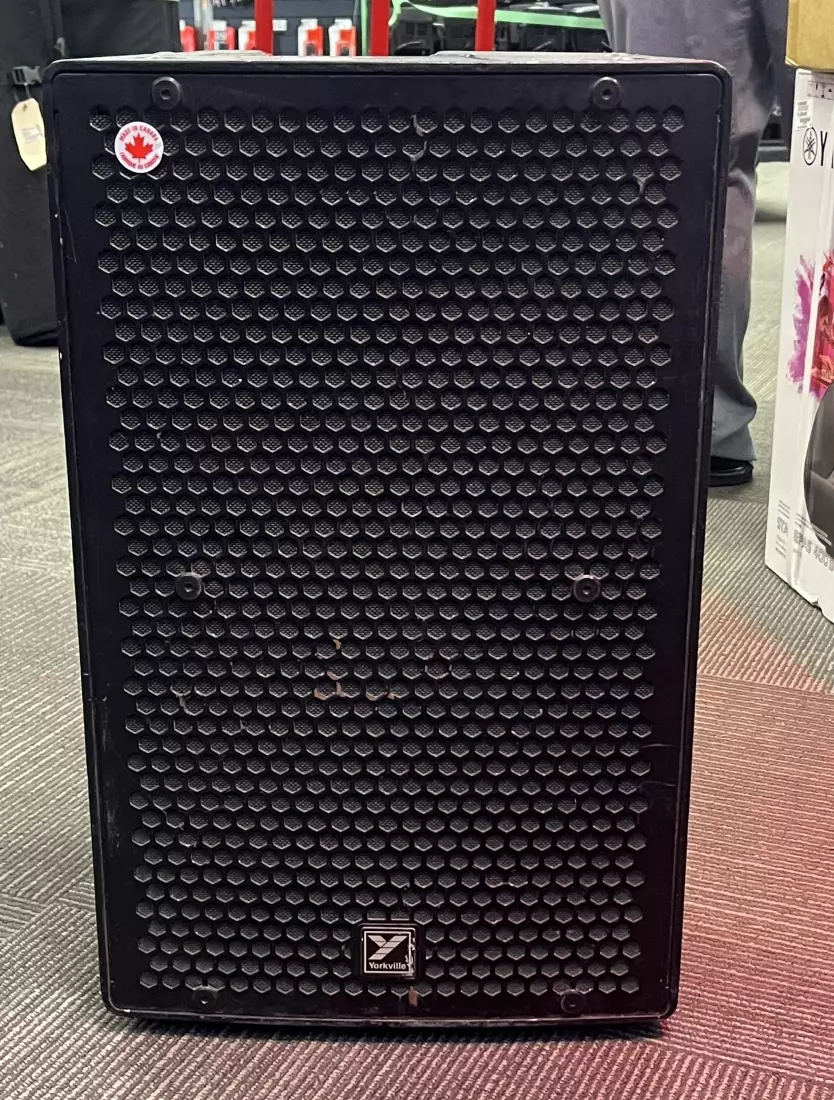

Yorkville - PS10P w/ Cover

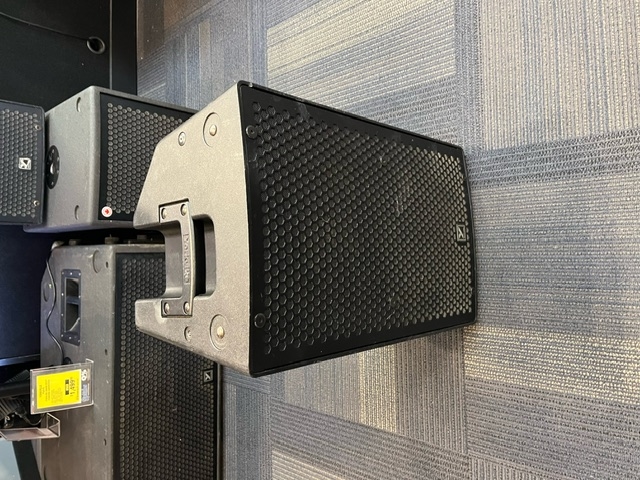

Yorkville - PS10P w/ Cover 2
Yorkville - PS10P w/ Cover 3

Buy From Store

Notify Me

 Pick up at the store only. Contact Fredericton New Brunswick

 This product may not come in original packaging.


Description

** INCLUDES COVER (VALUE OF $120 NEW) **

The most compact cabinet in the Parasource Series, the PS10P uses a high efficiency 10-inch woofer (with 2-inch voicecoil) to deliver extreme low end punch from as small a physical cabinet volume as possible. Wide 90 x 70 (H x V) conical horn delivers improved constant directivity and far better midrange response than competitive cabinets in this class.

Designed for maximum versatility, the PS10P works equally well as a Front-of House cabinet, side fill cabinet or floor monitor. Innovative and highly efficient passive cooling scheme ensures the PS10P will operate in any environment without need of noisy internal dust collecting fans. Integrated reinforced flypoints ensure the PS10P can be flown quickly and easily in any fixed installation.

Integrated DSP ensures the PS10P can operate in any application without complex external processing. A simple one-button high pass filter switch rolls off low frequency material when PS10P is used with any Paraline Series or powered lite System subwoofer. Bass boost delivers remarkably improved bottom end response from the PS10P without cluttering midrange program or affecting the cabinet's overall intelligibility - making it the perfect small speaker solution for larger events where additional subwoofer support is not available.

Innovative multi-band limiting allows the cabinet to deliver maximum output and remarkably event frequency response while protecting the PS10P's speaker components. Unlike competitive powered cabinets, the Parasource Series multi-band limiting scheme ensures essential elements like vocals and solo instruments in the essential midrange band aren't being modulated by transient attacks of low frequency material like kick drums and bass tracks. This delivers an extremely smooth and precise mix even at the highest output levels the cabinet can produce.

Rugged yet lightweight ABS cabinet and baffle design ensure unmatched long term reliability in the field.


Features:
* Integrated 800-Watt (1600 Watts peak) Amplifier
* Advanced high-efficiency, deep-excursion 10-inch Woofer
* German-made 1-inch HF Compression Driver with Thermal and Peak Protection
* 90 x 70-degree ABS Horn
* Max SPL 127dB Peak (124dB Continuous)
* High Efficiency Bi-Amplified Class-D Power Amplifier
* Passive Cooling Scheme (No Loud Fans Required)
* Designed for Front-of-House or Monitor Applications
* Integrated Two Channel Mini Mixer with XLR Microphone, 1/4-inch and RCA Inputs
* Multiband Limiting Delivers Extremely Transparent Listening Experience (Vocals Are Not Modulated By Bass)
* Integrated All Metal Speaker Standmount Adaptor
* Integrated Reinforced Flypoints
* Lightweight ABS Cabinet Construction
* Made in Canada

Specifications
System Type: Active Loudspeaker
* Active or Passive: Active
* Program Power (Watts): 800 watts (1600 watts peak)
* Max SPL (dB): 127dB Peak (124dB Continuous)
* Frequency Response (Hz +/- 3dB): 55hz to 20kHz
* Driver Configuration: 10-inch / 1-inch
* HF Dispersion ( DEG H x DEG V): 90 x 70
* HF Protection: Thermal/Peak Limiter
* LF Driver(s): 10-inch Ceramic w/ 2-inch Voicecoil
* LF Protection: Thermal/Multiband Peak Limiter
* LF Processing: Dynamic Bass Extension
* Cooling Scheme: Passive
* Power Cable: Detachable IEC
* Inputs 1/4-inch, XLR, 1/8"
* Inputs - 1/4 IN Jacks Yes (x2)
* Inputs - XLR Yes (x2)
* Input Sensitivity (Vrms Sine): 1.23 Vrms +4dBu
* Mixer Controls: Sub Mode HPF, Bass Boost, Mixer Enable
* Level Controls: Master Level, Mic Level, Line Level
* LED Indicators: Power, Limit, Clip
* Bar Handles: Yes
* Pole Mount Adapter (1 3/8 IN -3.5cm): Yes
* Enclosure Materials: ABS
* Baffle Material: ABS
* Grille: Perforated Metal
* Dimensions (DWH xbackW COM inches): 23 x 14 x 12
* Dimensions (DWH xbackW COM cm): 58.4 x 35.6 x 30.5
* Weight (lbs/kg): 40/18.2
