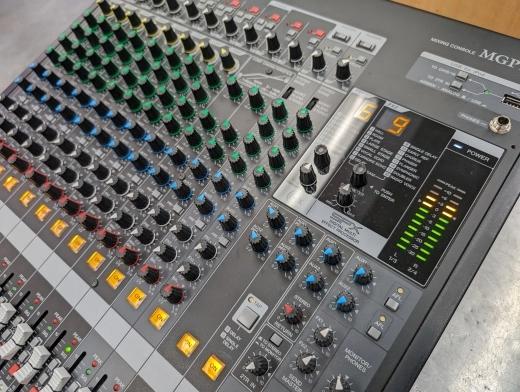

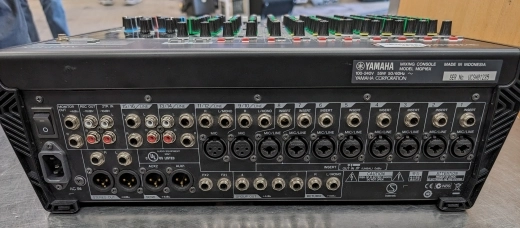

Yamaha MGP16X 16-Channel Mixer w/ dual digital FX
SKU: 370600
Model: MGP16X
Serial: UCSM01235
Views: 572
Quantity Available: 0
Condition: Used
Buy From Store
Pick up at the store only. Contact Langley British Columbia
This product may not come in original packaging.
Sorry, this item is not available for purchase
Description
Not just for live bands and DJ's, the MG Series mixing consoles can easily adapt to a truly impressive range of applications from portable PA to fixed installation.
Overview:
- Studio-grade Discrete Class A D-PRE Mic Preamps with an Inverted Darlington Circuit
- Musical X-pressive EQ based on Yamahas famed VCM Technology
- Professional 1-knob Compressors with LED Indicators
- High-grade Dual Digital Effects Processors: Advanced REV-X and Classic SPX
- Stereo Hybrid Channels utilizing a Powerful, Proprietary DSP
- Digital Connectivity for iPod/iPhone
- MGP Editor for Detailed Control of the Console's DSP settings via iPod/iPhone
- Rugged, Impact-resistant, Powder-coated Metal Chassis
- Integrated Rack-ears for Easy Rack Mounting
- Internal Universal Power Supply for World-wide Use
- 10 Mic Inputs with 48V Phantom Power and HPF per Channel
- Additional 2TR Inputs Provided to Accept the Output from Analog Devices or iPod/iPhone
- 16 Line Inputs (8 mono and 4 stereo)
- 4 GROUP Buses + ST Bus
- 2 AUX Sends + 2 FX Sends
Outline:
Mixing capability
- Mixing channels - 16 Line Inputs (8 mono and 4 stereo)
- GROUP - 4 GROUP Buses + ST Bus
- AUX - 2 AUX Sends + 2 FX Sends
- Input channel functions - Compressor CH1-8,HPF(100Hz 12dB/oct), CH EQ(MONO) 15dB(Max.):High 8kHz shelving/ Mid 250Hz-5kHz peaking(CH1-8,13-16)/ Low 125Hz shelving, CH EQ(STEREO) 15dB(Max.):High 8kHz shelving/ Mid 2.5kHz peaking(CH9-12)/ Low 125Hz shelving
- On-board processors - FX1:REV-X(8 PROGRAM, PARAMETER control), FX2:SPX (16 PROGRAM, PARAMETER control)
- Mic inputs - MIC: 10
- Phantom power - 48V phantom power per channel
- Line inputs - LINE: 8mono+4stereo, CH INSERT: 8, RETURN: 1stereo, 2TR IN: 1 stereo
- Digital I/O - USB Audio USB IN: iPod, iPhone exclusive
General specifications:
- Total harmonic distortion - 0.02% (20Hz-20kHz@ +14dBu)
- Frequency response - +0.5/-1.0dB 20Hz - 20kHz, refer to the nominal output level @1kHz
- Hum & noise level
- Equivalent input noise: -128 dBu (20Hz20 kHz, Rs=150Ω, Input Gain = Maximum)
- Residual output noise: -102 dBu (20Hz20 kHz, Rs=150Ω, Input Gain = Maximum)
- Crosstalk - -74dB @ 1kHz
- Power requirements - 100-240V 50Hz/60Hz
- Power consumption - 55W max
- Dimensions
- W - 447mm
- H - 143mm
- D - 495mm
- Net weight - 9.0kg
Yamaha 16-channel Mixing Console
