***In Store Pickup Only, We're not on L&M Truck Route***

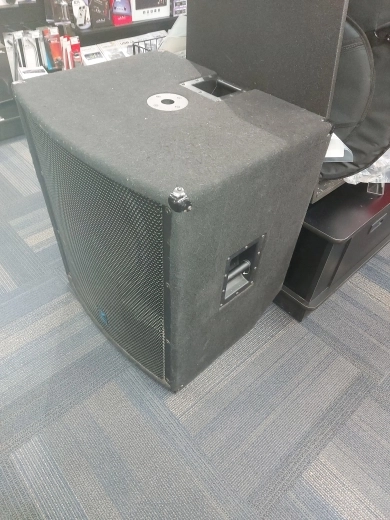

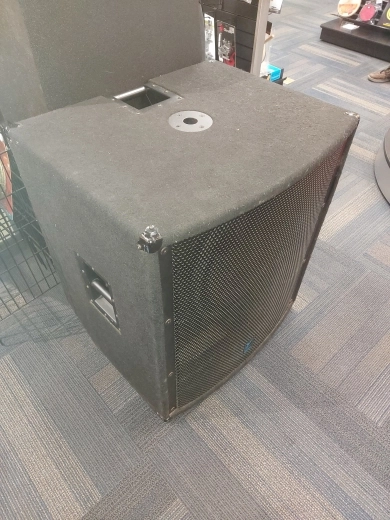

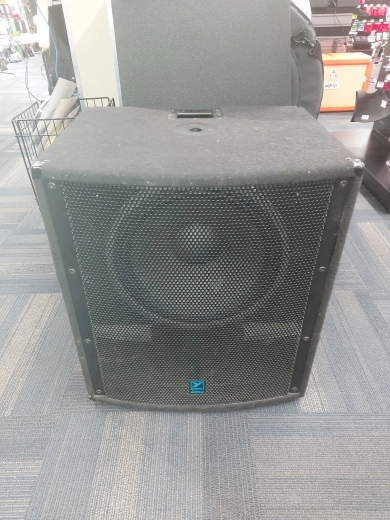

First choice in active subwoofers, the LS801P combines a cast-frame 18-inch bass driver with a rear-loaded bass horn enclosure made from 15mm birch ply covered in rugged black carpeting (black Ultrathane painted version - LS801PB is also available). Now add 2500 watts of onboard peak power featuring full-time "invisible" limiting. Result - a rugged, high-powered "earth mover." Balanced XLR inputs are included along with 1/4-inch TRS inputs which, at the push of a button, can handle either line-level or speaker-level signals (you can simply connect it to any full-range speaker for quick and easy setups). Connections also include both XLRM and 1/4" Output Link jacks for interconnecting up to 10 LS801P's in larger concert systems. An additional XLR 'Mono Blend Input' allows the LS801P to function in a stereo system by blending the balanced L & R signals from a stereo mixer and creating a single in-phase mono signal.

The control panel features a +/- 12dB Level pot for matching the LS801P's output with the rest of the system, a tunable 90 to 150Hz HF Roll off pot to let you match the LS801P to any full-range enclosure without an electronic crossover, a unique Shape control that modifies the bass response, a Line/Speaker Input Level button and LED's to indicate Power, Limit and Clip.

Hardware includes four steel inset handles, a steel top-mounted pole-stand adapter, a heavy-gauge curved steel grill and tilt-back wheels.

LS801P - Black Ozite (Carpet) Finish
LS801PB - Black Ultrathane (Painted) Finish

Features:
* Integrated 2500 Watt Amplifier (Peak - 1500 Watts Program)
* 18-inch Woofer
* Max SPL 140dB Peak (134dB Continuous)
* 45Hz - 150Hz with Adjustable HF Roll-Off
* 45Hz - 90Hz Variable Boost Frequency
* Paralleled XLR and 1/4-inch Selectable Line or Speaker Level Inputs
* Excursion, Peak and Thermal Woofer Protection
* Integrated All Metal Speaker Pole Mount Adaptor
* Solid 5/8-inch (15mm) Birch Plywood Construction
* Made in Canada

Specifications:
* System Type: Rear Horn Loaded Subwoofer
* Active or Passive: Active
* Program Power (Watts): 1500 Watts (2500 Watts Peak)
* Max SPL (dB): 140dB Peak (134dB Continuous)
* Frequency Response (Hz +/- 3dB): 45 - 150
* LF Driver(s): 18-inch Cast Frame Woofer w/4-inch Voicecoil
* LF Protection: Thermal / Overcurrent / Clip
* Power Consumption (typ/max): 120V (6.6A / 7.5), 230V (3.3A / 3.9)
* Inputs - 1/4 IN Jacks: 2 line/speaker level inputs, 2 link (in/out)
* Inputs - XLR: 2 line inputs, 2 link (in/out)
* Level Controls: Master
* Other Controls / Features:
- Active Controls
- Level
- Low Pass Filter Frequency
- Bass Boost Level
* Corners: Metal
* Feet: Rubber
* Wheels: Rear tilt-back
* Bar Handles: 2 (Side), 1 (Rear)
* Pole Mount Adapter (1 3/8 IN -3.5cm): 1 (Top)
* Enclosure Materials: 15mm (5/8inch) 11-ply Russian Birch
* Grille: Perforated Metal
* Covering / Finish: Black Ozite (Carpet)
* Optional Covering / Finishes: Black Ultrathane Paint (LS801PB)
* Dimensions (DWH xbackW COM inches): 23 x 27.5 x 32
* Dimensions (DWH xbackW COM cm): 58.4 x 70 x 81.3
* Weight (lbs/kg): 137.3 / 62.3
