Moog - VX-351
Buy From Store
Pick up at the store only. Contact Burlington Ontario
This product may not come in original packaging.
Description

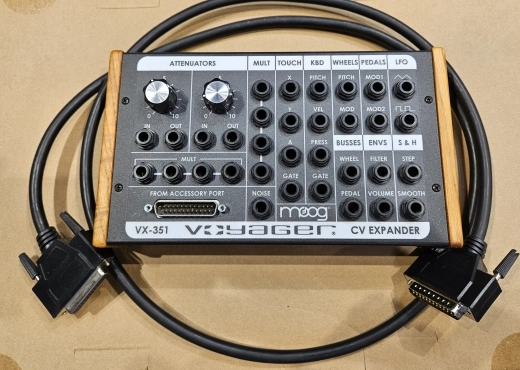

The VX-351 is a control voltage and gate output expansion box that provides 19 Control Voltage and 2 Gate outputs generated by the Minimoog Voyager. Also included are two 4-way mults for distributing a voltage to multiple destinations, and two attenuators.
The VX-351 connects to the Voyagers accessory port with the included detachable cable. It houses twenty-one one-quarter inch jacks that are connected to the Voyagers CV and Gate outputs in a CP-251 sized enclosure with an optional rack mount kit. It also includes two 4-way mults and two attenuators. Adding this to your Voyager adds the capabilities of a modular synthesizer. Think: if Voyager = infinite sound possibilities, then Voyager + VX-351 = infinity squared!!!
Control Voltage outputs:
* Keyboard Pitch
* Keyboard Velocity
* Keyboard Afterpressure
* Touch Surface X
* Touch Surface Y
* Touch Surface A (area)
* Pitch Bend Wheel
* Mod Wheel
* MOD 1 signal (signal at Voyager MOD 1 input)
* MOD 2 signal (signal at Voyager MOD 2 input)
* LFO triangle wave
* LFO square wave
* Mod Wheel Mod Buss output
* Pedal/On Mod Buss output
* Filter Envelope
* Volume envelope
* Sample and Hold Step
* Sample and Hold Smooth
* Noise
Gate outputs:
* Keyboard Gate
* Touch Surface Gate
