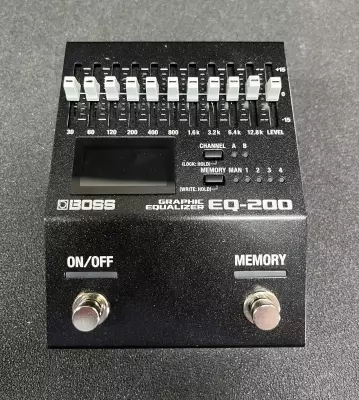

BOSS - EQ-200

Description

Simply Sophisticated

The EQ-200 is the most flexible compact EQ ever created for guitar and bass. It features two wide-ranging 10-band EQ channels, plus an onboard graphic display that shows the current EQ curve at a glance. Selectable signal flow structures configure the channels for stereo, parallel, or series operation, and it's even possible to patch in external pedals for deep pre/post tone shaping. Going further, the frequency centers of all 10 bands can be set to three different types, letting you optimize the EQ-200's performance for different instruments.

Features
* Class-leading sound quality with 32-bit AD/DA, 32-bit floating point processing, and 96 kHz sampling rate
* Dual 10-band EQs that can be used in stereo, parallel, or series
* Insert function for processing external effects with pre and/or post tone shaping
* Three different range settings: 30 Hz to 12.8 kHz, 32.1 Hz to 16 kHz, and 28 Hz to 14 kHz
* 15 dB boost/cut on each band, plus overall level control for each channel
* Stereo link function for operating both EQ channels together
* Intuitive interface with hands-on sliders and graphic EQ display
* Real-time panel setting and four memories for storing favorite sounds
* Panel Lock function disables controls to prevent unwanted changes
* Two onboard footswitches with customizable assignments
* Support for expanded control via external footswitches, an expression pedal, or MIDI
* Full MIDI I/O provided with mini TRS jacks (BMIDI-5-35 adaptor cable available separately)
* Micro USB jack for firmware updates
* Runs on PSA-series AC adaptor or three AA-size batteries

Specifications
Sampling Frequency: 96 kHz
AD/DA Conversion: 32 bits
Processing: 32-bit floating point
Memory: 4 + Manual
Nominal Input Level: INPUT A/MONO, B: -10 dBu
Maximum Input Level: INPUT A/MONO, B: +7 dBu
Input Impedance: INPUT A/MONO, B: 2 M ohm
Nominal Output Level: OUTPUT A/MONO, B: -10 dBu
Maximum Output Level: OUTPUT A/MONO, B: +7 dBu
Output Impedance: OUTPUT A/MONO, B: 1 k ohms
Recommended Load Impedance: OUTPUT A/MONO, B: 10 k ohms or greater
Bypass: Buffered bypass
Controls: ON/OFF switch, MEMORY switch, 30--12.8 k sliders, LEVEL slider, A/B button, MEMORY button
Display: Graphic LCD (64 x 32 dots, backlit LCD)
Indicator: A/B indicator, MEMORY (MAN, 1--4) indicators
Connectors:
* INPUT (A/MONO, B) jacks, OUTPUT (A/MONO, B) jacks: 1/4-inch phone type
* CTL 1, 2/EXP jack: 1/4-inch TRS phone type
* MIDI (IN, OUT) jacks: Stereo miniature phone type
* DC IN jack
* USB port: USB micro-B type (program update only)
Power Supply: Alkaline battery (AA, LR6) x 3, AC adaptor (sold separately)
Current Draw: 170 mA
Dimensions: 138 x 101 x 60 mm / 5.4" x 4" x 2.4"
Weight: 630 g / 1.4 lb
