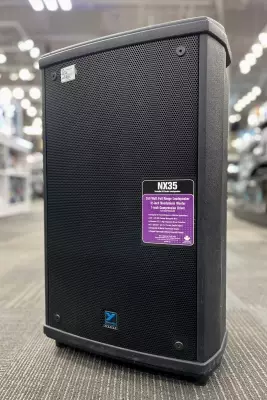

Yorkville - NX35 350-watt Passive Speaker
Buy From Store
Pick up at the store only. Contact Scarborough Ontario
This product may not come in original packaging.
Description
*** VERY GOOD CONDITION ***
- Very clean - very few scuffs/scratches
- This is the 1st generation NX35
The 350-watt NX35 uses a premium high-powered and highly efficient Neodymium 12-inchwoofer. The 80º x 50º horn design, patterned after the custom Waveguide horn technology usedin Yorkville's popular élite loudspeaker line is used in the NX35. An improved dual bulb CTL™protection circuit is now used to protect the aluminum diaphragm neodymium magnetic highfrequency horn driver.
The non-resonant Polypropylene construction materials, an improved cabinet design with greatlyreinforced internal structure improves the low frequency response of the NX Series boxes, makingfor a better and more balanced overall loudspeaker performance.The modified trapezoidal shape of the NX series loudspeakers allows both active and passive versionsto function flawlessly in any PA application. The reinforced cabinet design ensures a proper up-angleand stable footing when NX loudspeakers are employed as monitors, and allows NX cabinets to bepacked in more compact arrays or multiple cabinet clusters.
Integrated bar handles and stand mount adaptors make the lightweight NX35 loudspeaker theideal highly mobile live or DJ PA box. Integrated 1/4-20 flypoints and optional flyware assembliesensure the NX35 can be easily adapted to any installation.
Specifications:
SYSTEM TYPE: Passive 2-Way
PROGRAM POWER (watts): 350
IMPEDANCE (ohms): 8
FREQ. RESPONSE (Hz +/- 3dB): 60 - 18000
SENSITIVITY (dB@1W/1m): 100
MAXIMUM SPL (dB): 125
X-OVER FREQUENCY (Hz): 2000
LF DRIVER(S): 12" Neodymium
HF HORN: Molded Composite
HF DRIVER: 1.4" Aluminum
HF HORN THROAT DIAMETER: 1"
HF DISPERSION (H° x V°): 80 X 50
HF PROTECTION: Dual Bulb CTL™
INPUTS: 2 x 1/4" / 1x Speakon™
CONSTRUCTION: Molded Composite Cabinet with Metal Grille
HANDLES: 1 x Side Bar
FLYWARE TYPE / QUANTITY: 1/4-20 x 5
FLYWARE LOCATIONS: 2 Top / 1 Back / 1 Bottom
OPTIONAL ACCESSORIES: NXF Brackets
STAND MOUNT ADAPTOR: Yes
DIMENSIONS (DxWxHxBW inches): 12.25 x 16 x 26.5 x 9
DIMENSIONS (DxWxHxBW cm): 31.1 x 41.6 x 67.3 x 22.9
WEIGHT (lbs / kg): 28 / 12.7
