Empress Effects - EMPRESS MBX2
.webp)
Description

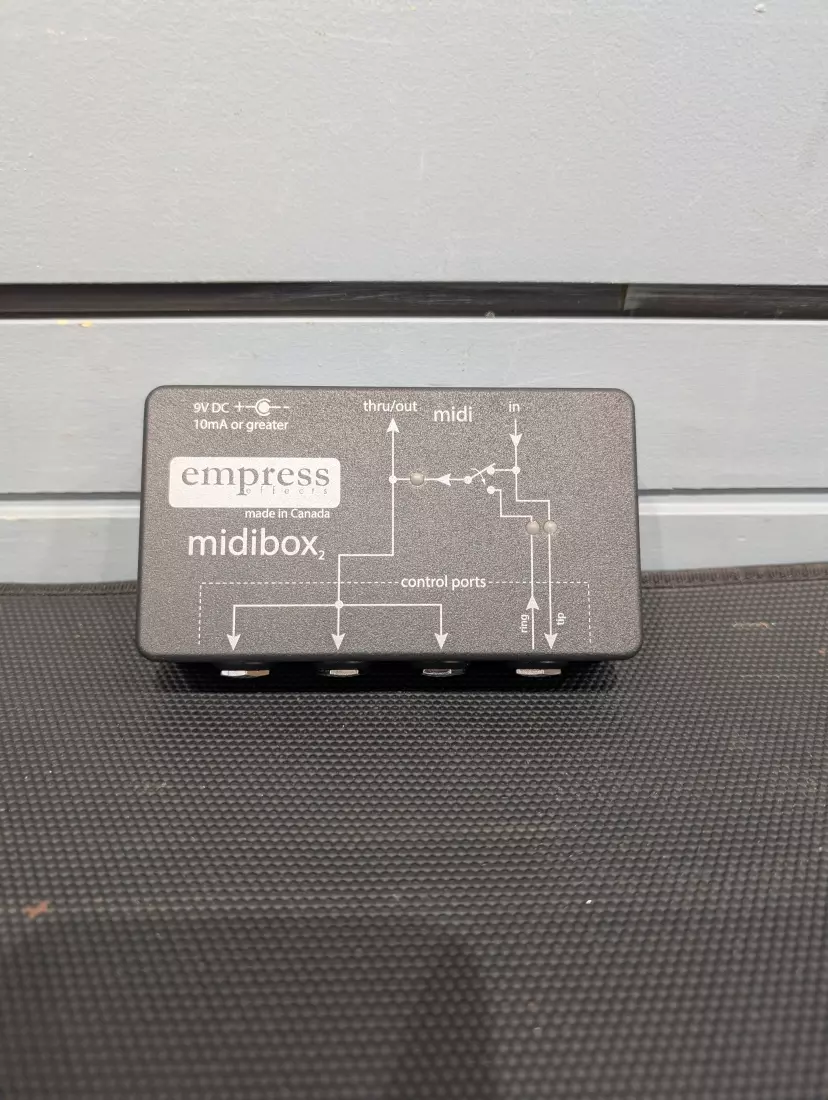

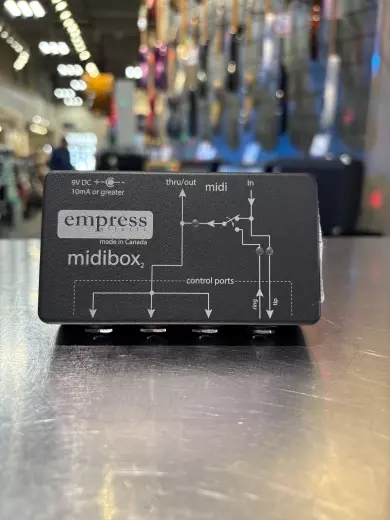

The Midibox2 allows you to connect Empress Pedals equipped with a control port to MIDI. It converts the standard 5 pin MIDI cable to a simple guitar patch cable.
Features
Control Empress Pedals with MIDI - Use MIDI to control any Empress pedal equipped with a control port.
Control up to 4 pedals at once - The midibox has 4 control port outputs that let you control up to 4 Empress pedals simultaneously.
MIDI out - set the internal dip switch to accept midi out messages from the control port and relay them to the other control ports and the midi thru/out connector.
LED feedback - LEDs light up, letting you know when and where MIDI messagess are being sent.
Specifications
Power Input Voltage: 9V DC
Power Input Connector: 2.1mm barrel connector (Negative tip)
Power Consumption: ~ 30mA
Enclosure Material: Die Cast Aluminum
Input connector: Standard 5 pin MIDI connector
Output connector: 1/4" Jack
Dimensions (H x L x W): 1.25" x 4.5" x 2.5"
Weight: 0.5 lb
