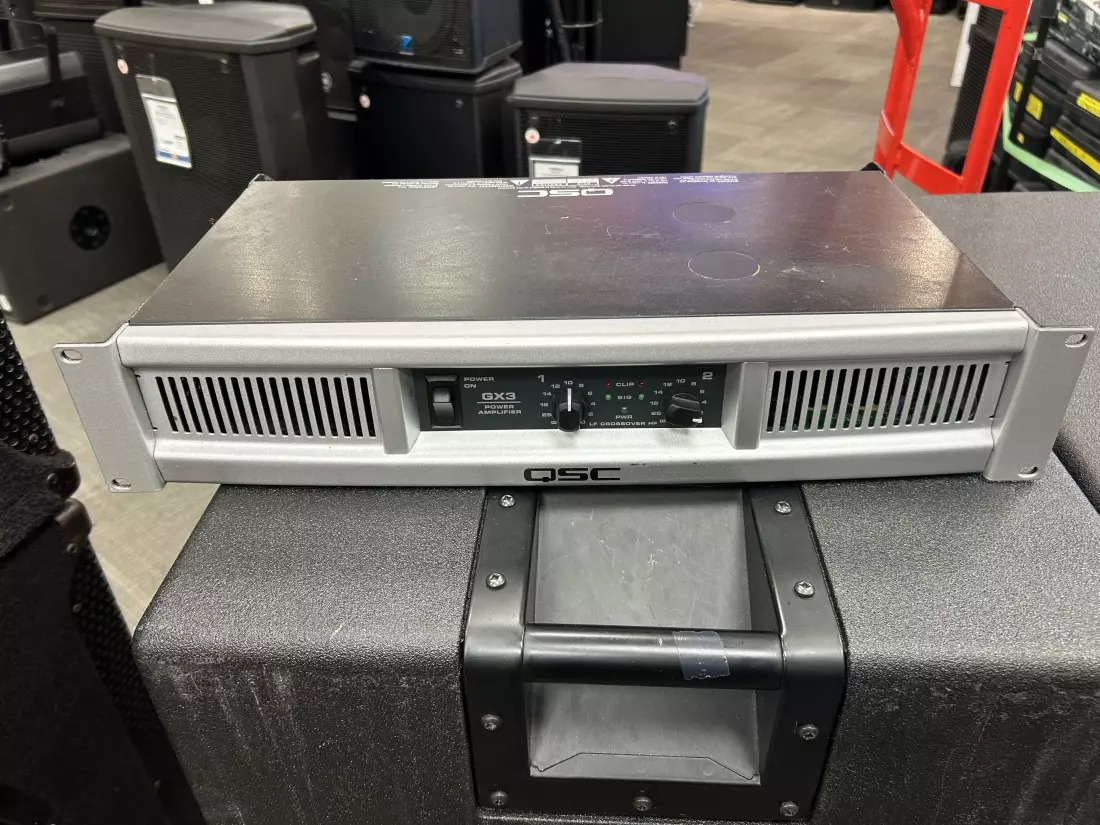

QSC - GX3-QSC

Description

GX Series amplifiers are ideal for professional entertainers who require maximum performance and portability on a limited budget. The hallmarks of the QSC brand - professional audio quality, meticulous engineering, precision manufacturing and long-term reliability - are all intrinsic to GX. Add contemporary styling, multiple input/output options, light weight, and advanced protection circuitry, and the GX Series clearly represents real value - something everyone can use.

Features
* Power levels matched to the most popular speakers used by entertainers
* Optimized for maximum real-world headroom into 4- and 8-ohm speaker systems
* Inputs: XLR, 1/4-inch TRS and phono input connectors for compatibility with any source
* Outputs: Speakon® combo accepts 1/4-inch (TS) plugs or Speakon 2- and 4-pole plugs (connects 2 poles only). Binding posts support all other speaker wiring systems
* Minimum depth chassis (10.1-inch / 257 mm) fits in compact, inexpensive effects racks
* Lightweight - GX3 less than 26 lb (12.5 kg)
* Detented gain controls for precise setting and matching of sensitivity
* GuardRail™ automatically protects the amplifier and loudspeakers from damage due to temperature rise or overdrive without shutting down the show
* Front panel LEDs monitor power, signal, and clipping
* Subwoofer/satellite crossover built-in

Specifications
* Input Sensitivity: 1.2 V rms
* Voltage Gain: 32.2dB
* Output Circuitry: Class B
* Power Requirements: 6.3 A
* Dynamic Headroom (4 ohms): 2dB
* Front Panel Controls and Indicators: Gain controls, 21 detents, Red CLIP LEDs, proportional, Green SIGNAL LEDs, threshold 35 dB below clipping, Blue POWER LED, AC on
* Product Dimensions (HxWxD): 89 x 483 x 257 mm
* Net Weight: 12.1 kg
