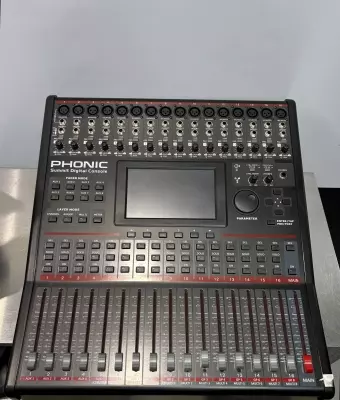

Phonic Summit Digital 16 Channel Mixer

Description

This is a great digital mixing console for live or recording settings! Everything works perfectly on this unit. No case included. MOTORIZED FADER with memory bank for all settings!


16 mono mic/line with insert points and grouped phantom power

Internal digital sampling rate up to 96 kHz in 24-bit resolution

Compact design achieved through 16 faders encompassing three layers (Channel, AUX/Group, Multi)

17 ultra-smooth 100 mm motorized faders arranged in a familiar analog mixer arrangement

Intuitive GUI interface accessed through a full color touch-screen

31-band GEQ available on EFX 1 and Main Out, 15-band GEQ on EFX 2

4-band parametric EQs can be found on all input channels,multi outputs and main outputs

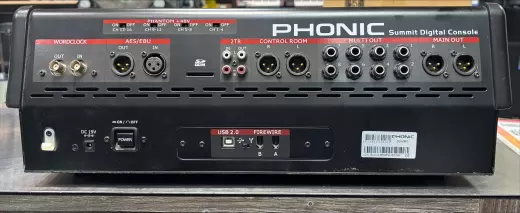

Digital AES/EBU input and output

Eight balanced 1/4" phone jack 'multi' outputs

8 AUX and 8 Group buses assignable to 'multi' outputs

Dual true algorithm-based multi-effects processor. Effects can be applied to any input channel, aux send or group, and the stereo effect signals can be assigned to main stereo mix or all eight multi outputs

25 dynamic processors available on input channels, 'multi' outputs and main mix

Save and instantly recall scenes at the touch of a button

Processing accomplished through a high quality 40-bit floating point digital signal processor

Includes FireWire/USB interface for multi-track PC and Mac connectivity through USB 2.0 / FireWire interface
