Mesa Boogie - MK-V-H-G/GB

Description

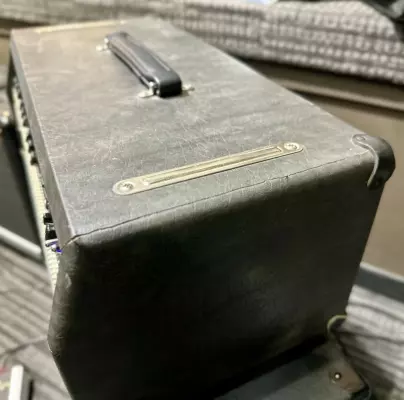

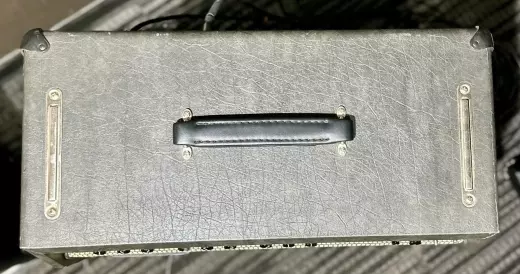

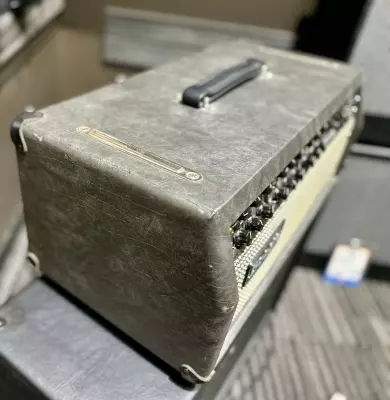

*** killer amplifier. Tolex had separated at a couple seams on top but it was reglued by repair facility. See pics.



More than a collection of amplifiers, the MARK FIVE is a living history of Mesa's contributions and a tribute to the evolution of great electric guitar tone.
You'll also find some new Brit-inspired circuits here that rival the classic Boogie sounds and are destined to become iconic on their own merit.

SPECS.

Custom Grey Taurus vinyl and Grey.Black weave grill.
Simul-Class Power Amp featuring Multi-Watt and Duo-Class technologies which provide three power and three operating class options that are channel assignable via 10/45/90 Watt Power Switches:
Choose 2 power tubes operating in pure vintage Class A (single-ended), producing 10 Watts - 2 tubes running in time-honored Class A/B producing 45 Watts or 4 tubes running in Mesa's legendary, patented Simul-Class Power that blends the best of Class A and Class A/B simultaneously to produce 90 Watts of pure tonal magic / 4x6L6 (or 4xEL-34), 7x12AX7, 1x5U4
Bias Select Switch (6L6/EL34)
Fixed Bias for Consistent, Maintenance Free Performance
Full Power/Variac Power Switch
3 Fully Independent Channels with 9 Modes (Channel 1 = Clean, Fat or Tweed, Channel 2 = Edge, Crunch or Mark I, Channel 3 = Mark IIC+, Mark IV or Extreme)
Normal/Bold Switch on Channel 1, Normal/Thick Switch on Channel 2 (Mark I mode only), Normal/Bright Switch & Pentode/Triode Switch on Channel 3

Each Channel features: Independent Gain, Treble, Mid, Bass, Presence, Master, Footswitchable or Auto-Assignable Contour Depth Control, Footswitchable All-Tube, Long Spring Reverb Control, Rectifier Tracking (Auto-selects Tube for all 10 Watt Modes, Diode for all 90 Watt Modes, selectable Tube or Diode for 45 Watt Modes on Channels 1 and 2, Diode for 45 Watt Mode on Channel 3
5 Band Graphic EQ is Footswitchable, Channel Assignable and Selectable between 1 group of 5-Band Sliders or 3 channel specific, variable depth Contour Controls
Footswitchable, Channel Assignable or True Bypassable Fully Buffered FX Loop with Send Level Control (over all channels when activated)
Output Level Control (over all channels when activated)
Footswitchable Solo Level Control(over all channels when activated)
True "Hard" Bypass Switch removes FX Loops, Output Level & Solo Level Controls from signal path
Tuner Output w/Footswitchable Mute
Slave Out w/Level Control
Fan Cooled with On/Off Switch
External Switching Jacks for Channels 2, 3 (channel 1 is default), EQ & Solo

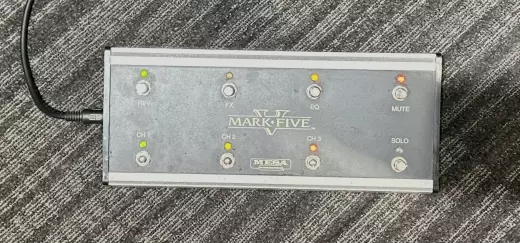

Aluminum Chassis New 4x4 - 8 Button Footswitch (Bottom Row: Channel 1, Channel 2, Channel 3, Solo Top Row: Reverb, FX Loop, EQ & Tuner Mute)

NOTE: no slip cover.
