RME - FIREFACE-UFXIII

Description

The Multichannel Flagship Interface

The Fireface UFX III is the center of any multitrack studio, handling up to 94 channels I/O with ease. Its unprecedented flexibility, compatibility, the inclusion of DURec (Direct USB Recording) and RME's famous low latency hardware and driver designs guarantee flawless operation in any mode and application.

Packed with professional features, including SteadyClock FS, MADI I/O (64 channels), a powerful DSP, USB 3.0 (full 94 channel I/O Class Compliant ready), TotalMix FX, Direct USB Recording, and support for the Advanced Remote Control USB (available separately), the Fireface UFX III is the professional's preferred tool for multitrack recording, mixing and mastering.

The Fireface UFX III is based on a newly developed analog and digital board. While the analog board offers, for example, DC-coupled analog outputs as well as new AD and DA converters with improved THD+N value, the digital board also enables interesting new features thanks to updated high-tech components.

Connectivity

* 12 x Analog I/O
* 4 x XLR/TRS Mic/Inst/Line
* 2 x Phones Output
* 1 x AES/EBU I/O
* 2 x ADAT I/O
* 2 x SPDIF I/O
* 1 x Word Clock I/O / MADI Coaxial
* 1 x MADI optical I/O
* 2 x MIDI I/O
* RME USB 3.0

Features

* TotalMix FX - Unlimited mixing/routing with superior features for studio and live work
* DURec (Direct USB Recording) integrated digital recorder for all inputs and outputs directly to USB memory devices via the front USB port
* USB 3 Class Compliant Mode - Transport audio with lowest latency and industry leading stability
* AutoSet Digital Gain Control
* DC-coupled Outputs
* Including FX
* DigiCheck for metering, testing, measuring and analyzing digital audio streams
* SteadyClock FS reference class Digital Clocking
* ARC USB 1.1 MIDI remote control (optional, sold separately)

Powerful USB 3 Performance

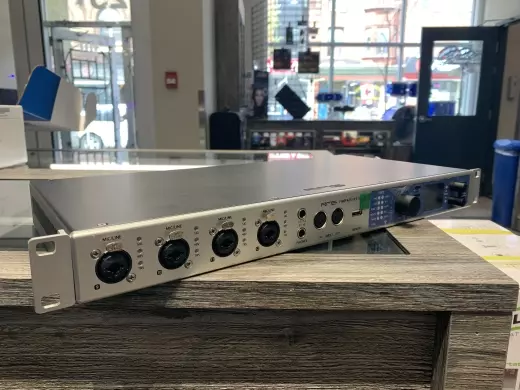

The front panel of the Fireface UFX III provides four high-performance XLR/TRS combo inputs for microphone, instrument and line signals, two stereo headphone jacks with +19 dBu output level, MIDI I/O, and a USB port. In combination with the DURec function (Direct USB Recording), the USB port allows independent recording of selected input and output signals (up to 80 channels) to a connected USB storage medium.

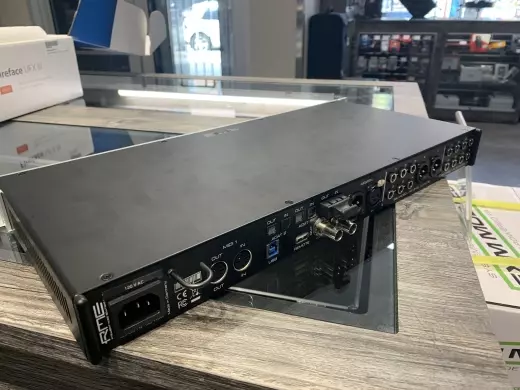

The rear panel reveals the full connectivity of the Fireface UFX III. Besides another MIDI I/O, the two optical ADAT I/Os, an AES/EBU I/O, and eight balanced analog outputs with line level (including XLR stereo monitor outputs) are available. With the new Multi-Mode, the two ADAT I/Os can be used as separate optical SPDIF inputs and outputs in addition to the AES I/O. Furthermore, the Fireface UFX III offers an optical MADI interface (SC) with 64 bidirectional channels. The Word Clock connectors (BNC) work as additional coaxial MADI input and output if required.

Comprehensive MADI Connectivity
The Fireface UFX III opens the doors to a host of RME and 3rd party digital and analog I/O solutions. Expanding your analog channel count, the ability to route/mix within the digital domain through numerous sources presents many flexible options. Multiple external MADI devices can also be connected in series.

Powerful Applications for Mixing, Monitoring and Measurement included
The Fireface UFX III comes with the TotalMix FX DSP mixer offering comprehensive routing and monitoring options, as well as the DIGICheck Analyzer allowing to measure and analyze the digital data feed in both directions with maximum precision. TotalMix FX can completely replace an external mixer, enabling the creation of multiple latency-free monitor mixes with EQ, Dynamics, Reverb and Delay for any outputs, incl. main monitors and headphone mixes for musicians.

DC-Coupled Outputs - CV/Gate Voltage Control
All of the Fireface UFX IIIs line-level outputs are fully DC-coupled, allowing for the sending of control voltages (CV) or Gate information to modular synthesizers (such as the popular Eurorack and Moog/MOTM/Synthesizers formats) and other studio hardware.
